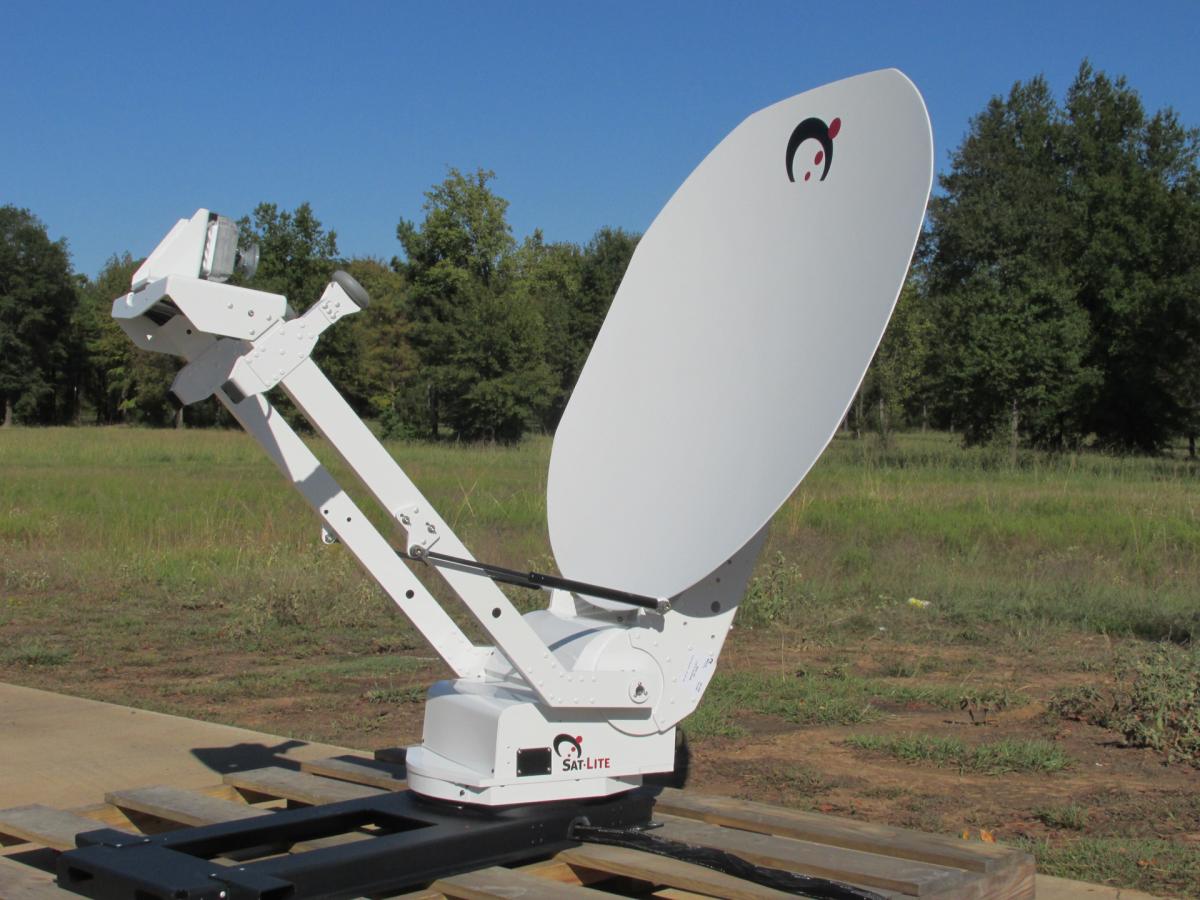

The Sat-Lite Technologies Model 1156 Ka vehicle-mount / driveaway antenna is a high performance 1 Meter antenna designed for Ka Band broadband operation that includes the Viasat EXEDE® Service. Key features include a low stow height configuration and compact pedestal minimizing vehicle constraints. Also included is an integrated auto-locate controller with manual override and front panel display with keypad. The integrated control system easily connects to the modem and is pre-calibrated at the factory prior to shipping. An optional mount frame is also available.
Sat-Lite vehicle mount VSAT auto acquire antennas provide communications when terrestrial networks are not available or are not usable due to catastrophic events. Sat-Lite Technologies offers a host of antenna products to choose from that mount on existing vehicles or trailers and offer immediate and reliable network communication at the push of a button. The antennas and available controller options are preconfigured to operate with various amplifier and modem combinations.
Typical users may include the following:
Whatever the industry, Sat-Lite can deliver a high performance vehicle mount antenna for reliable communication solutions.
The Sat-Lite Technologies Cirrus Antenna Controller is designed to automatically locate and peak on a target satellite with the simple push of a button in about 3 to 5 minutes. A user friendly interface is provided with a keypad and LCD Display as well as an enhanced ethernet GUI. The Cirrus Controller can operate independently of modems by locking on to a number of DVBS-2 carriers to positively identify a satellite, peak on it to obtain optimal azimuth heading, then move to a final target satellite. The DVB carriers can be easily programmed from the GUI and set optimally by the user for fast and efficient acquisitions. The unit includes a GPS and Compass and can provide GPS data to an external modem. The controller is designed to operate with a full array of Sat-Lite Technologies Vehicle Mount Antennas from 1.0 meter to 1.8 meter applications.
The Sat-Lite Technologies RC4000 Antenna Controller is a fully weatherized unit that is pre-integrated with the Antenna System. The unit can be supplied with GPS, Compass, and DVB receiver to provide accurate position and antenna heading information. Optional Beacon Receiver, Spectrum Analyzer, and multiple user interfaces are available. The control unit deploys the antenna to an accurate elevation and polarization angle and then sweeps in azimuth to locate a signpost satellite (with known DVB signal). The onboard DVB receiver locks on the satellite and positively identifies it. Accurate look angles can then be used to peak on the final target / desired satellite longitude.
The Sat-Lite Technologies RC4000 Antenna Controller is designed to automatically locate a target satellite with the simple push of a button. A user friendly menu based interface is provided with a keypad and LCD Display. The controller includes a GPS and Compass to automatically calculate look angles and locate stored satellites (up to 50). The controller is designed to operate with a full array of Sat-Lite Technologies Vehicle Mount Antennas from 1.0 meter to 2.4 meter applications.
The Sat-Lite Technologies Flyaway Antenna Controller is a fully weatherized unit that is pre-integrated and can be quickly mounted on the Antenna. The unit comes with a GPS and Compass to provide accurate position and antenna heading information. The control unit deploys the antenna to an accurate elevation and polarization angle and sweeps in azimuth to locate a satellite. The onboard DVB receiver locks on the satellite and positively identifies it. Accurate look angles can then be used to peak on a desired satellite longitude.
Configuration |
Motorized |
Reflector Size |
1.0 m |
