Troposcatter


10028 BLOS Troposcatter

  1. Home
  2. Products
  3. Troposcatter
  4. 10028 BLOS Troposcatter
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1

Product Overview

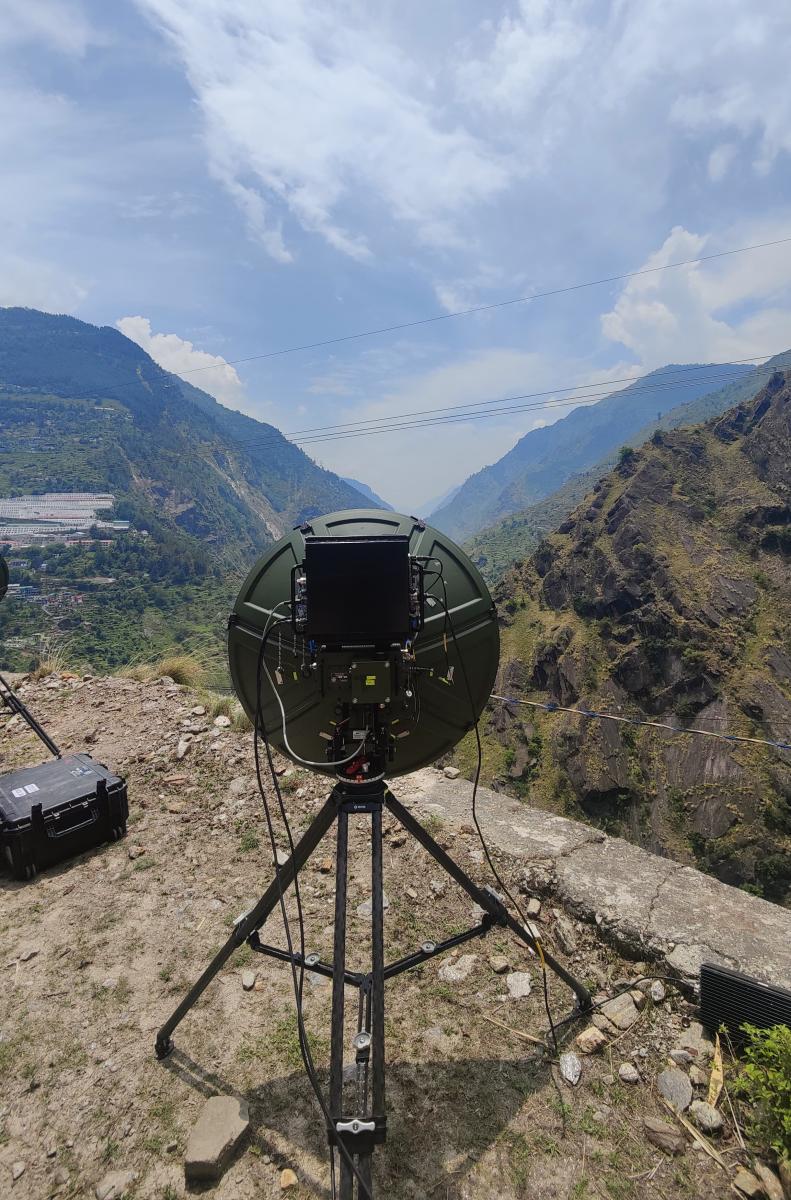

The Sat-Lite Technologies Model 10028 manual flyaway antenna is highly portable and designed to meet beyond line of sight communication requirements in harsh environments. The antenna features a multi-segmented carbon fiber composite reflector. Assembly time is less than 10-15 minutes. The elevation-over- azimuth pedestal provides excellent stiffness characteristics and convenience for the user when pointing and peaking to a remote terminal. The system is designed to meet international performance specifications for Compact Trans Horizon Communication System Digital Loop Carrier System for Over the Horizon Communication/ BLOS.


 Get a Quote
  • Compact Trans Horizon CommunicationSystem
  • Digital Loop Carrier System for Over theHorizon Communication/ BLOS.

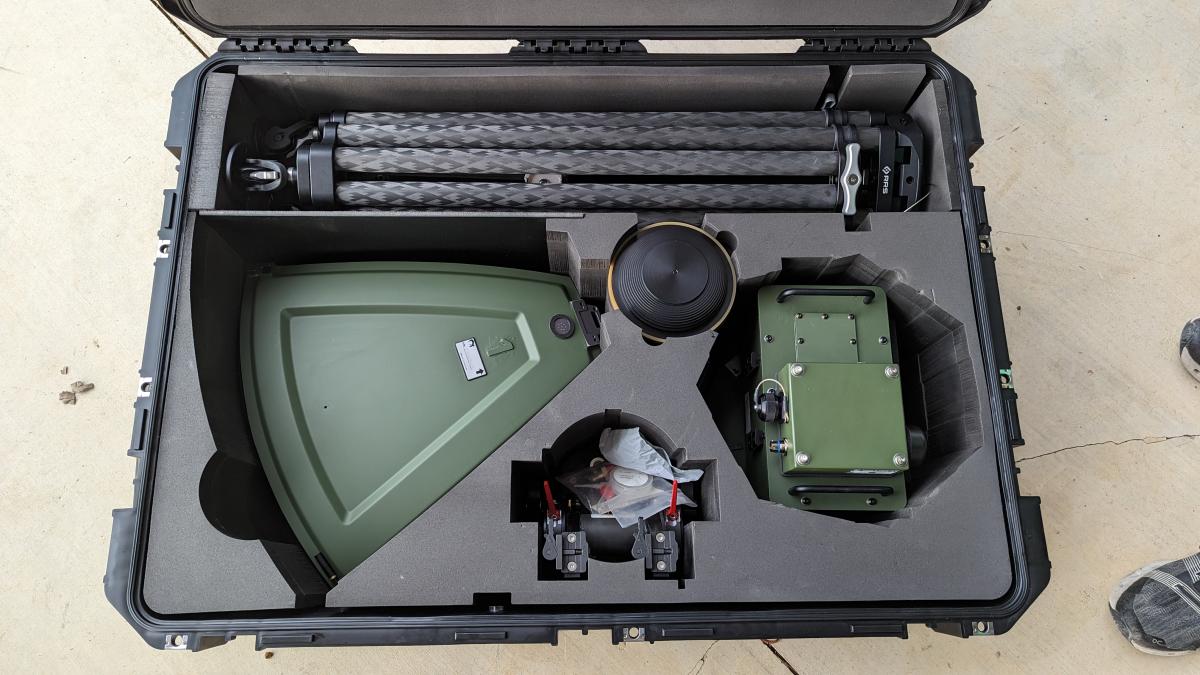

  • Ships in 1 Ruggedized All Weather Case
  • Upgradable for Satcom Application

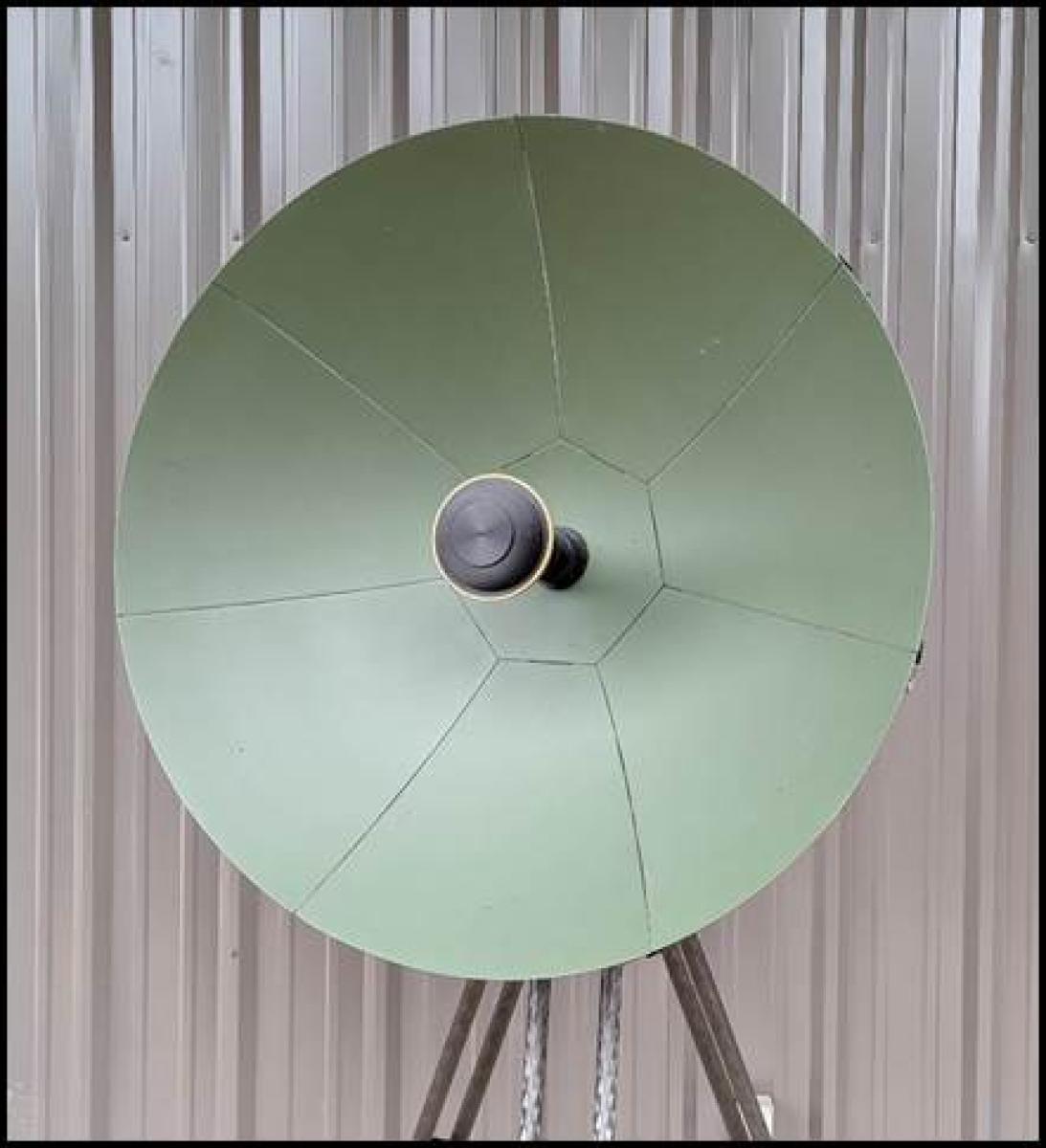

  • Multi Segment Carbon FiberPrecision Reflector

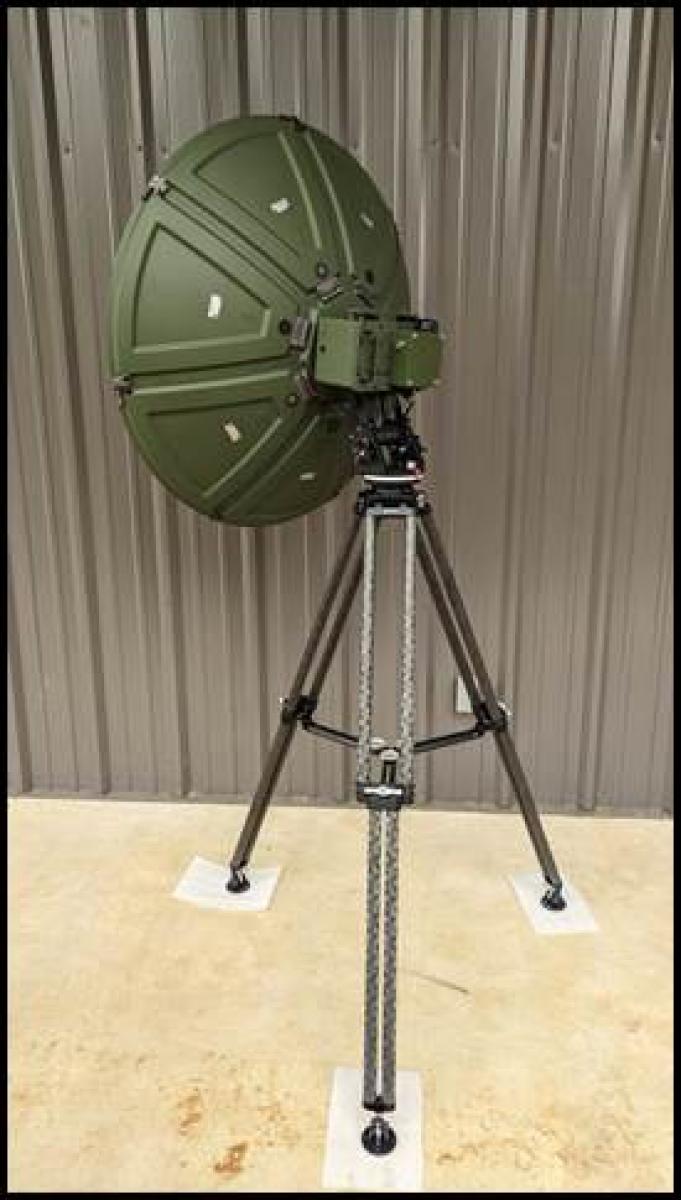

  • Compact Pedestal featuring easy point
  • High Gain Design
  • Optional Motorized Compact Controller

Operational Benefits:

  • DCCL, Line-of-Sight (LOS), Obstructed Line-of-Sight(OLOS), Over-The-Horizon (OTH) Communications,
  • Designed for 0–70-mile range.
  • Low Prime Power Requirement- operates off 120VAC,24V DC power. Optional - Powered by battery, solar withbattery backup, or vehicle power.
  • Designed to be packed in ruggedized cases.
  • Setup and operational in 15 minutes.
850-0090 Rev 1 10028 Tropo .pdf

850-0090 Rev 1 10028 Tropo .pdf

Download PDF
