4282 Full Motion Earth Station

Product Overview

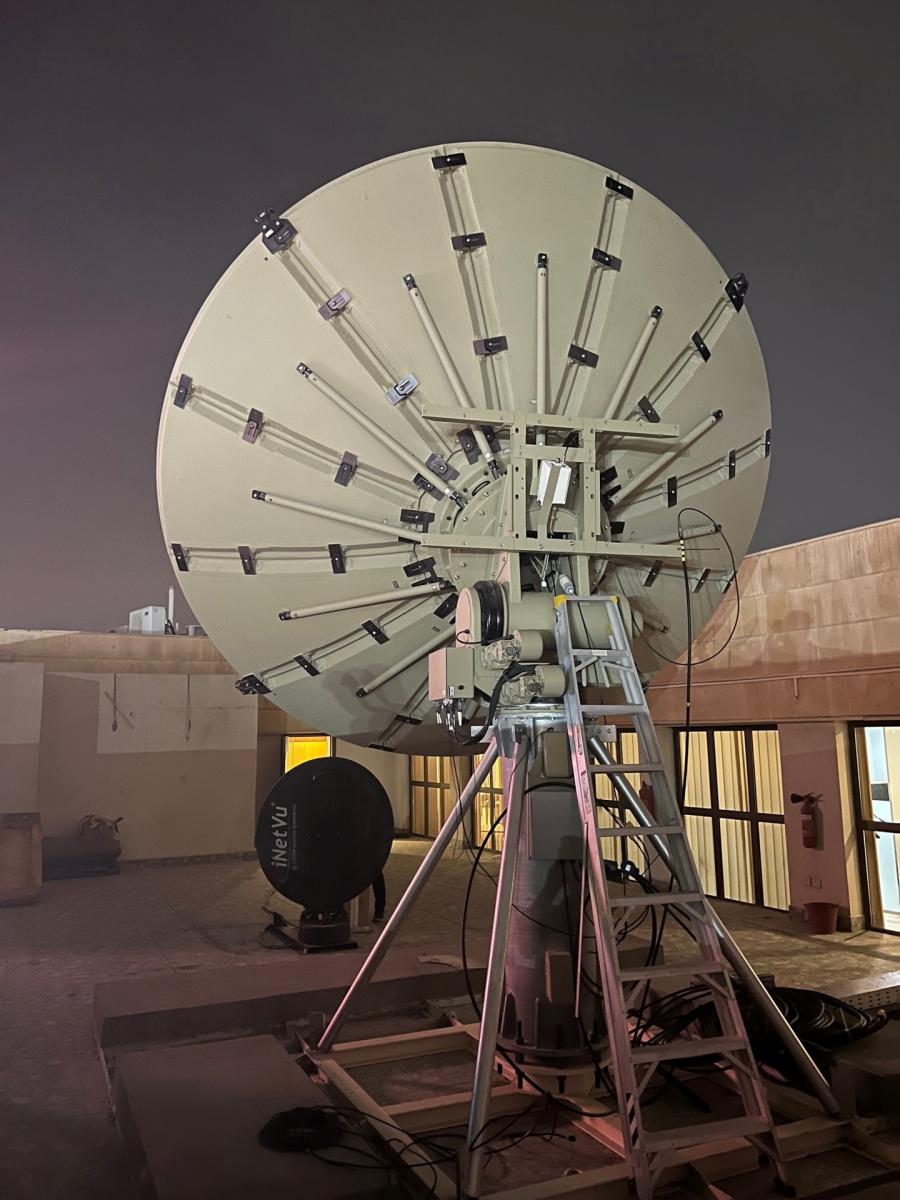

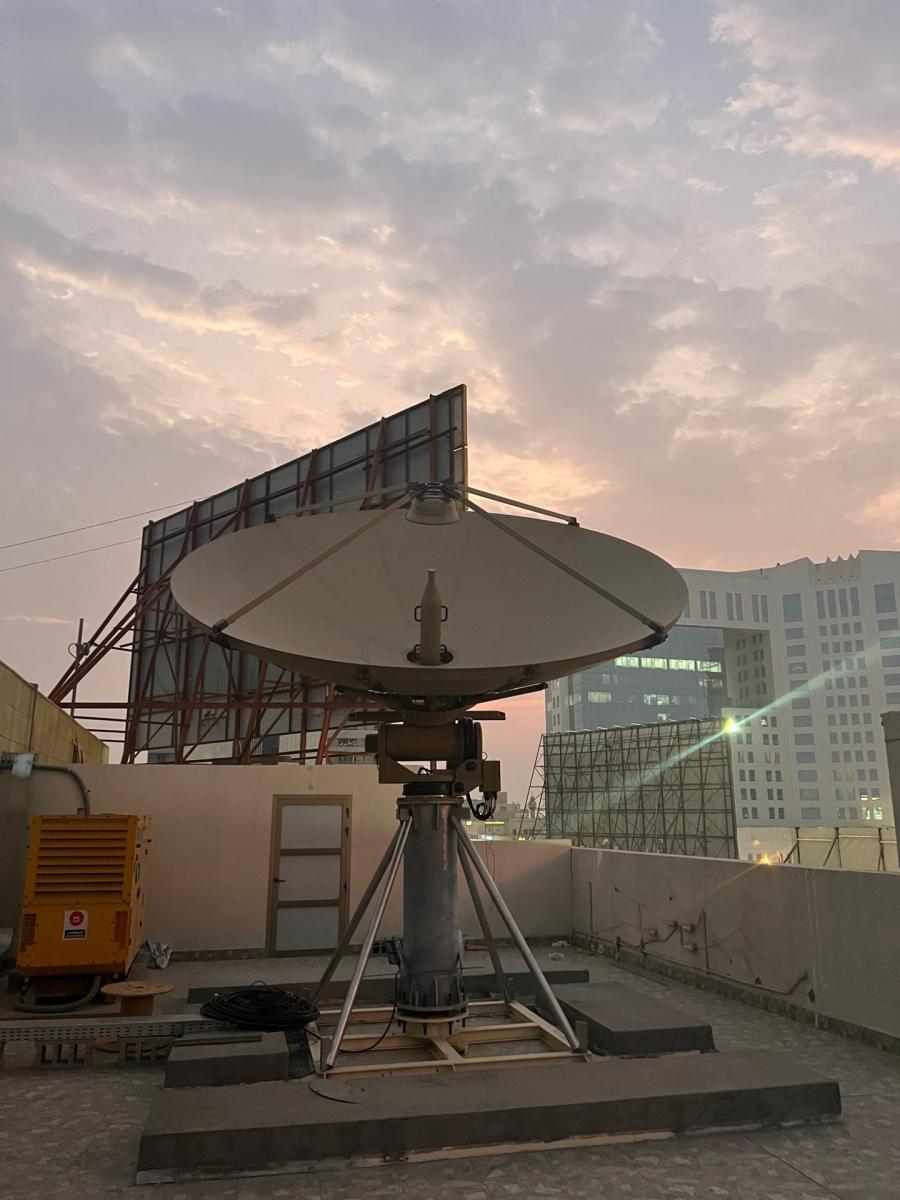

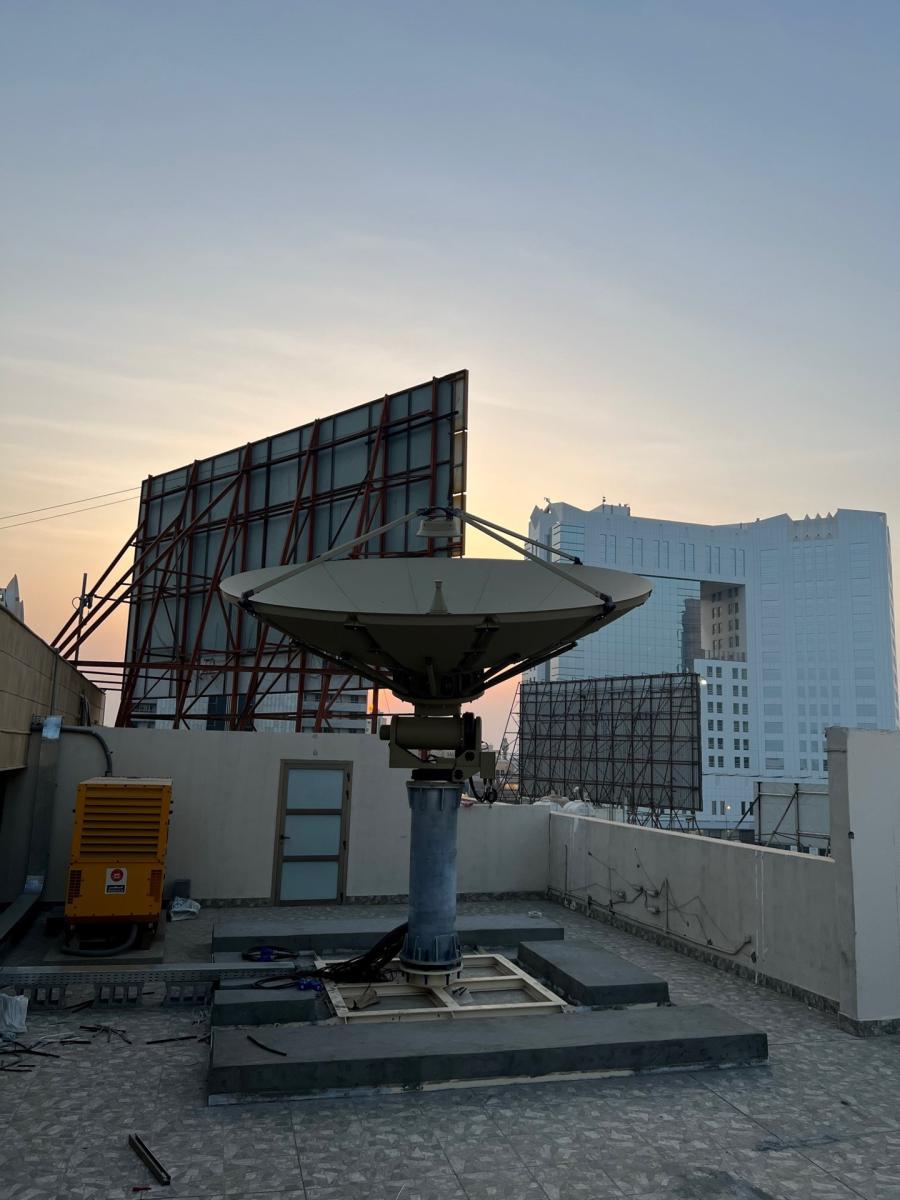

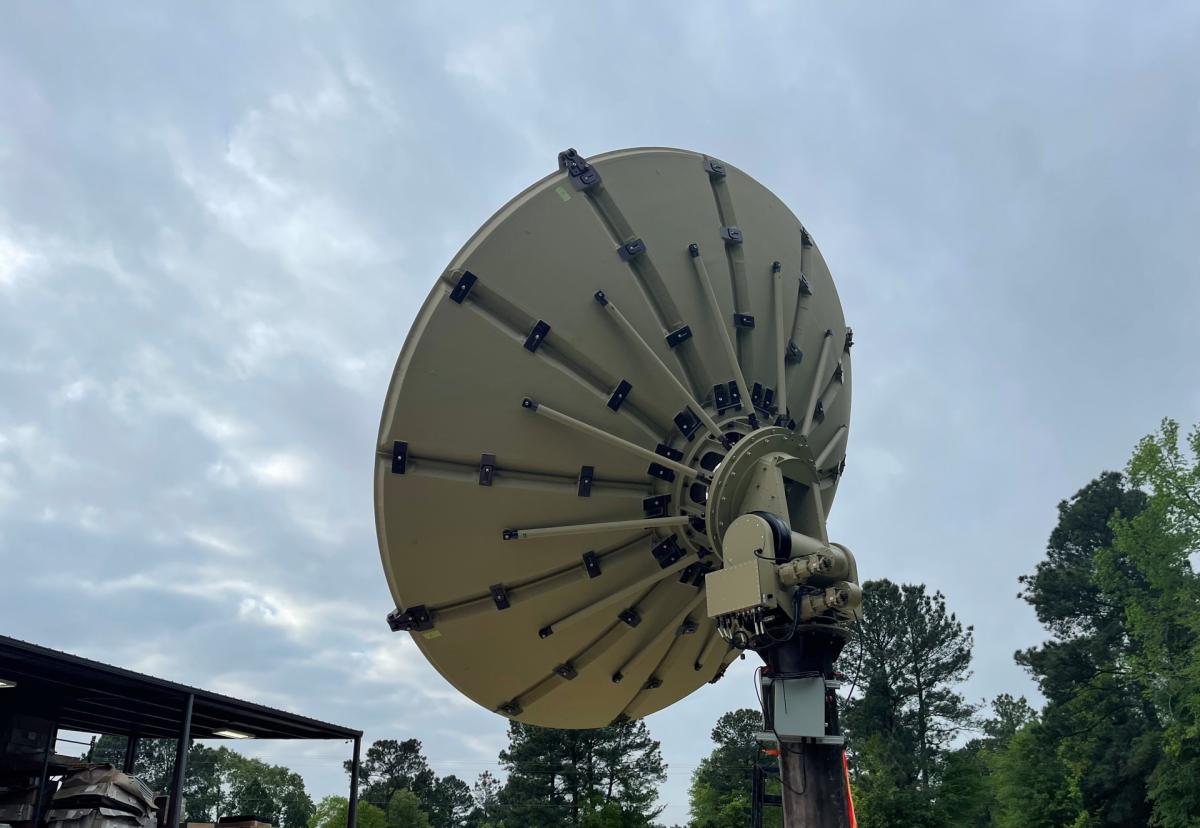

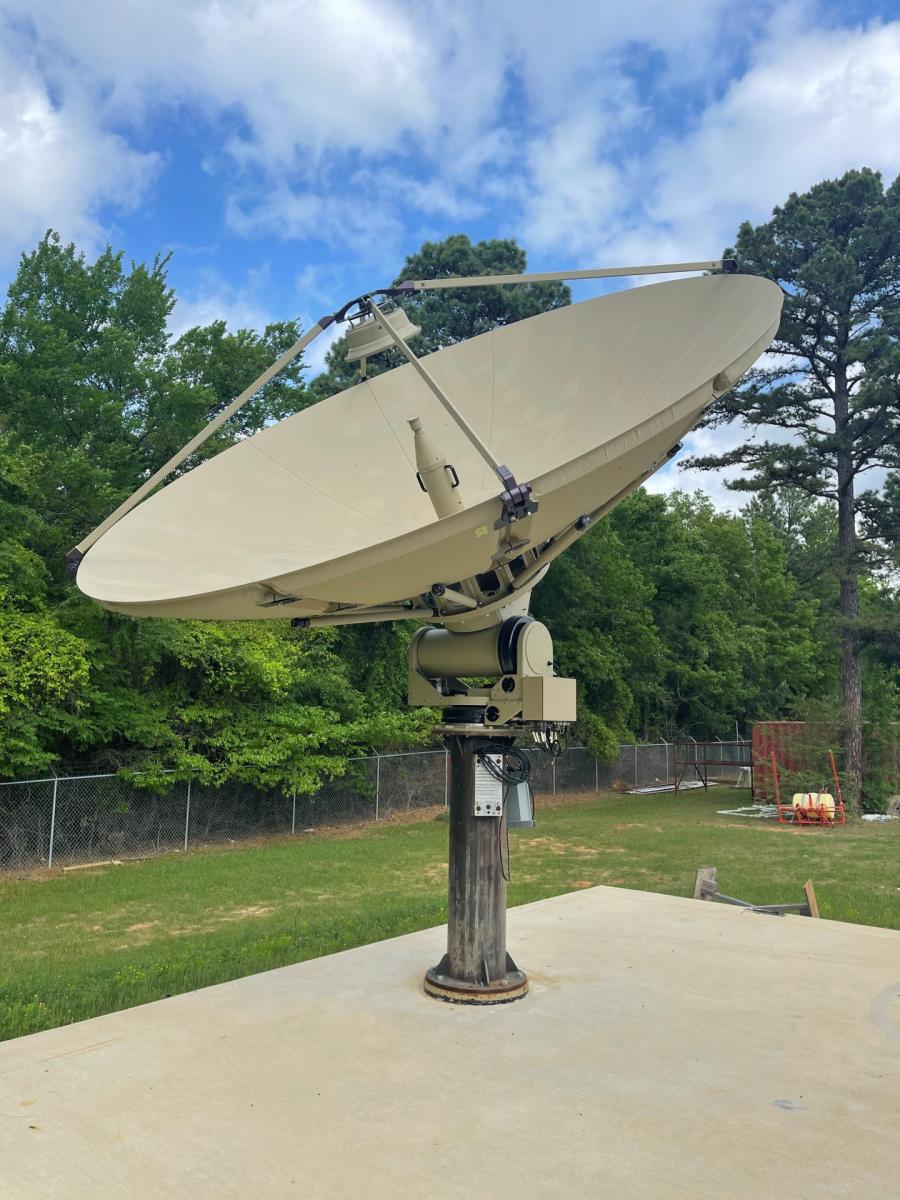

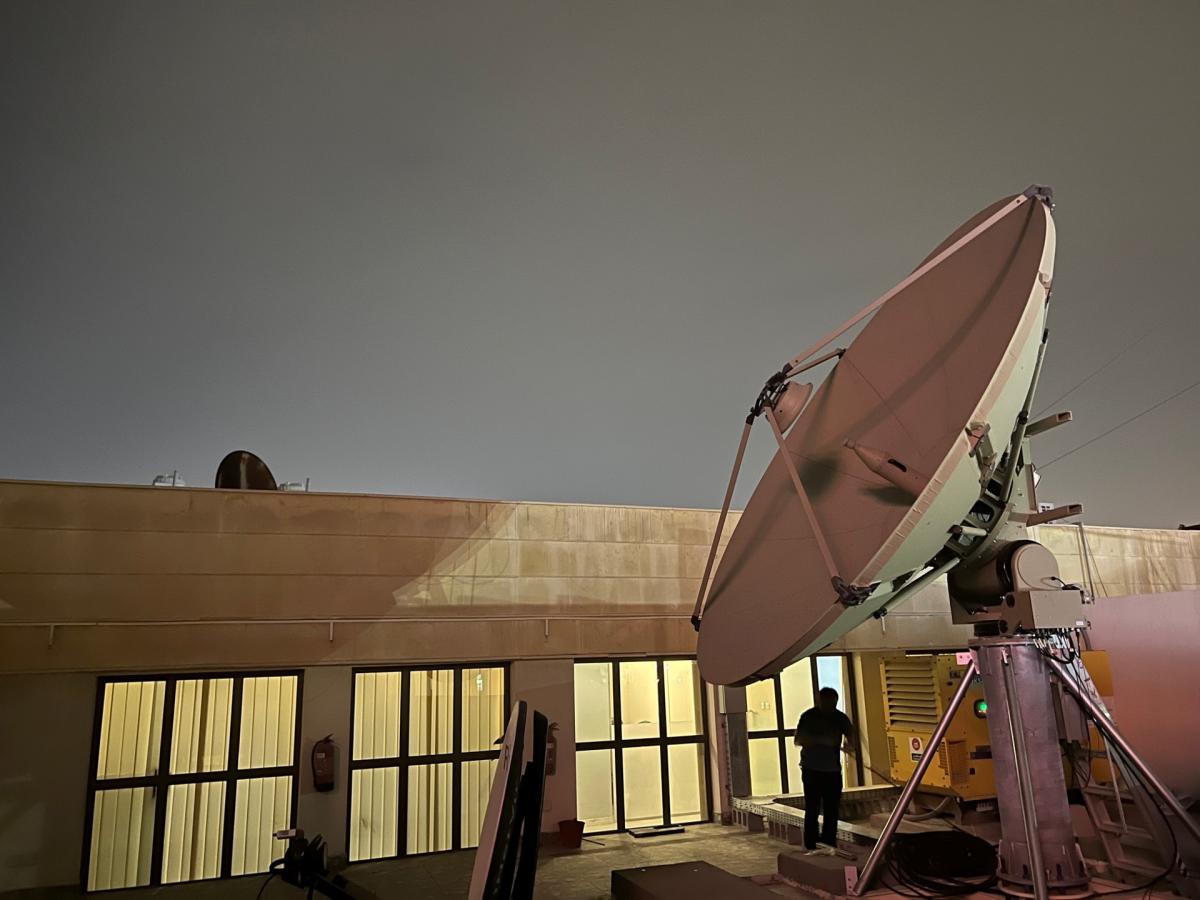

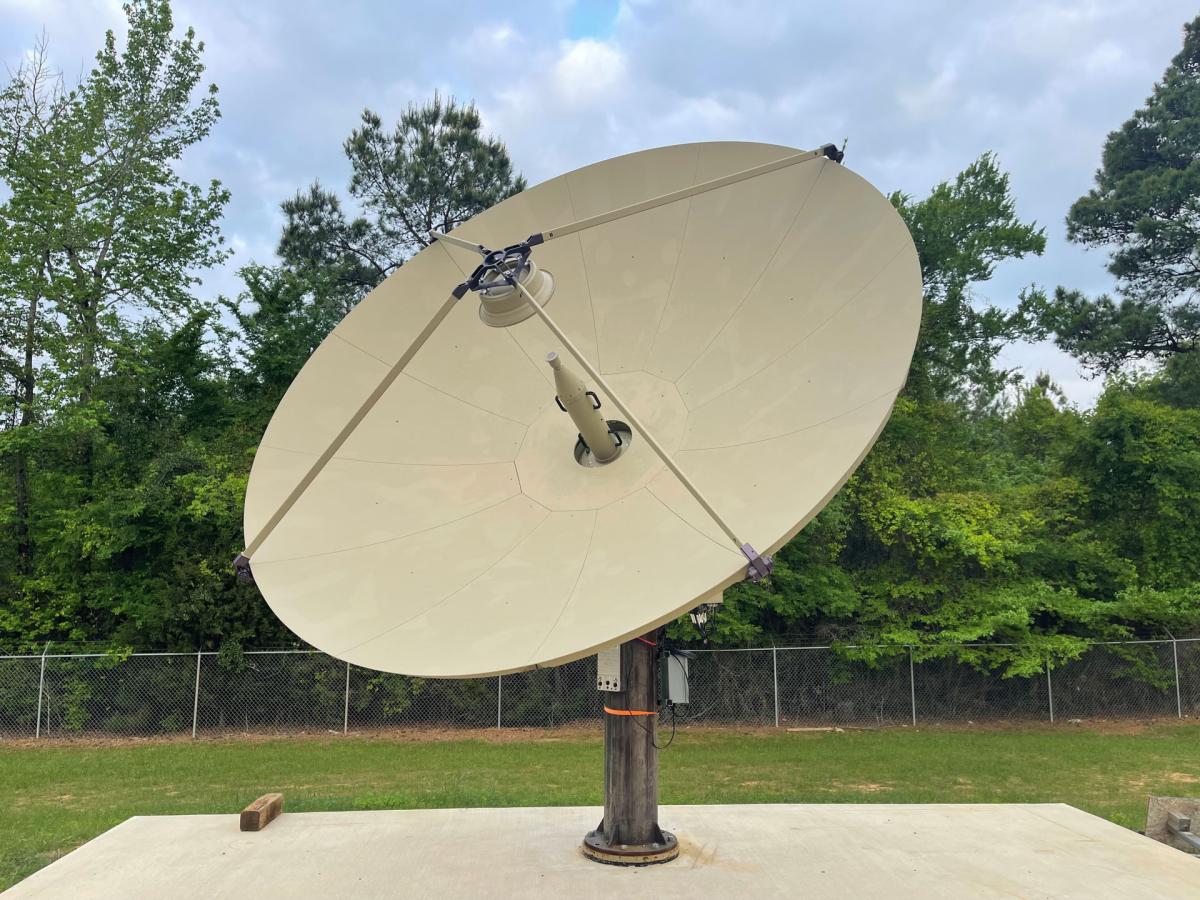

The Sat-Lite Technologies Model 4282 X/Ku/Ka Band Antenna is a high performance full motion fixed earth station antenna. This antenna features a precision aligned carbon fiber reflector and servo control system. The reflector has been factory aligned and measured using a precision laser tracking system to ensure high surface accuracy. The antenna is designed for X, Ku, and Ka band frequencies. The galvanized steel pedestal offers full motion azimuth drive ( 180° continuous), and a 0 to 90 Deg elevation drive. The servo system provides precision azimuth, elevation, and polarization control. An integrated L Band tracking receiver is included for multiple tracking algorithms.

The antenna is designed to meet international performance specifications for commercial off-the-shelf applications. Multiple integration packages for amplifier and LNA/LNB mountings can be accommodated.
