4281 Full Motion Earth Station

Product Overview

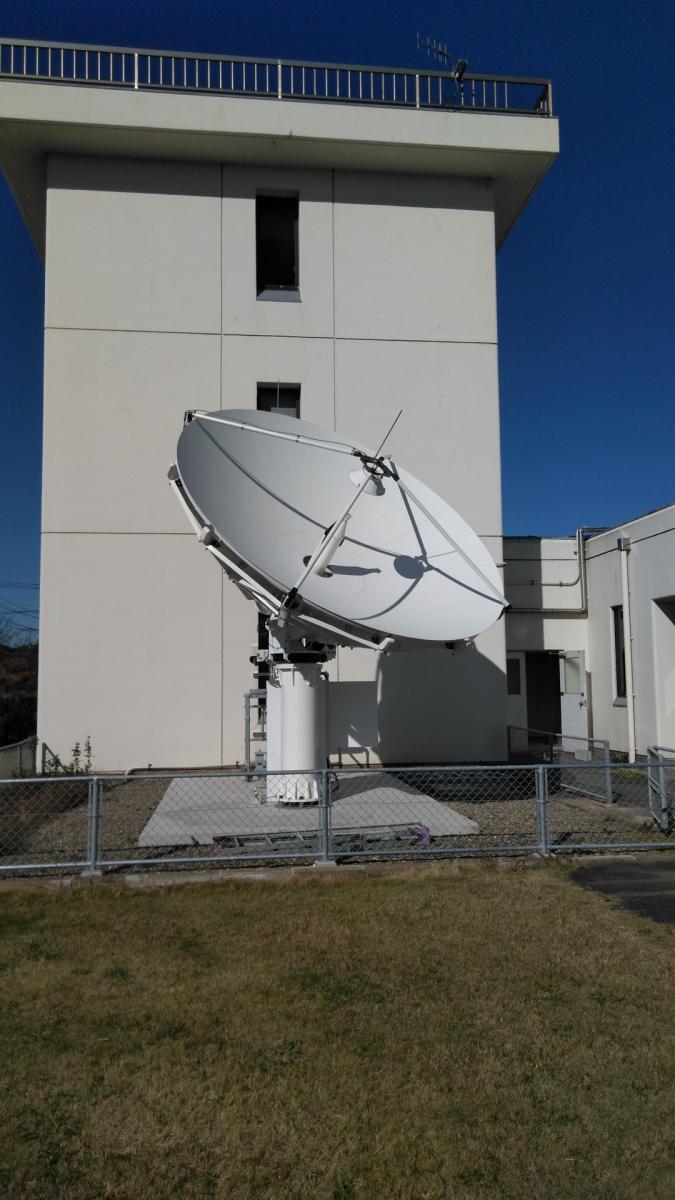

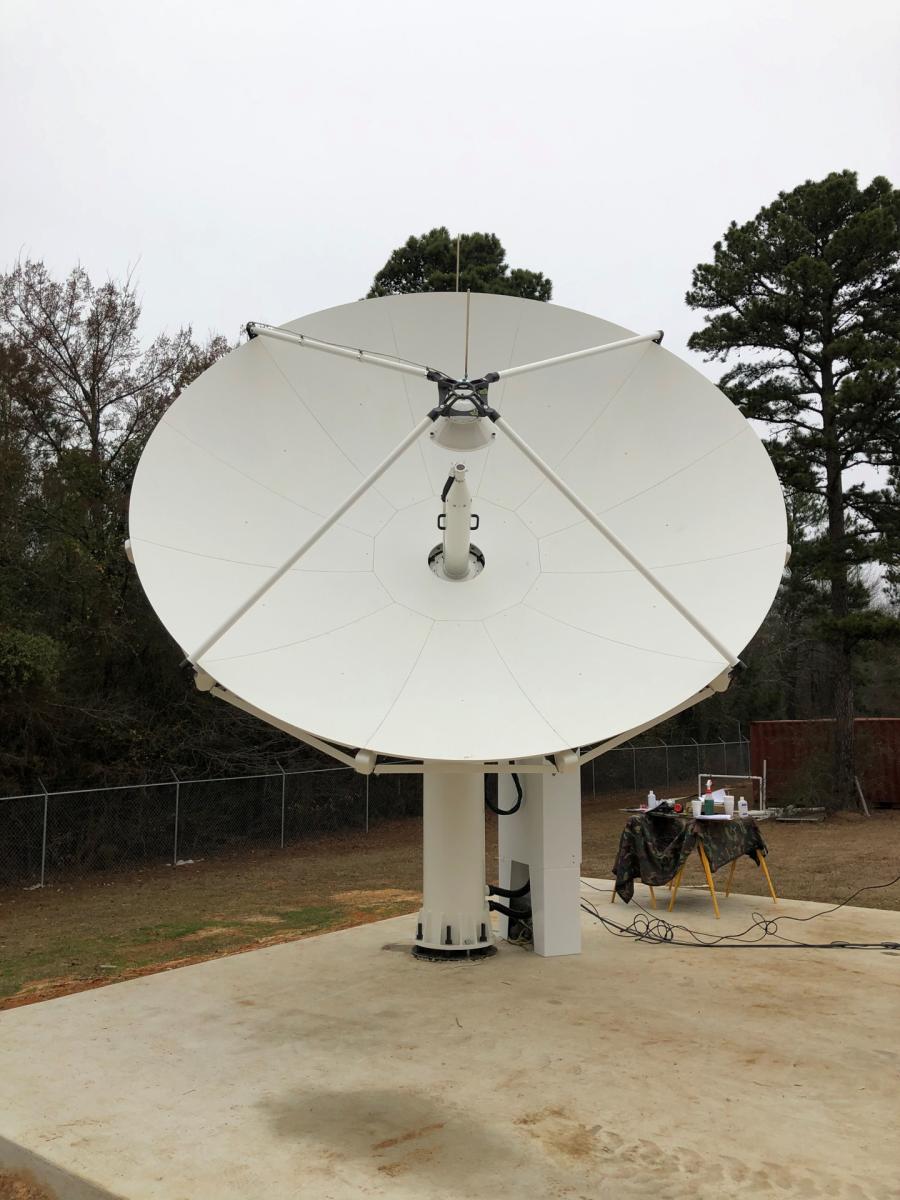

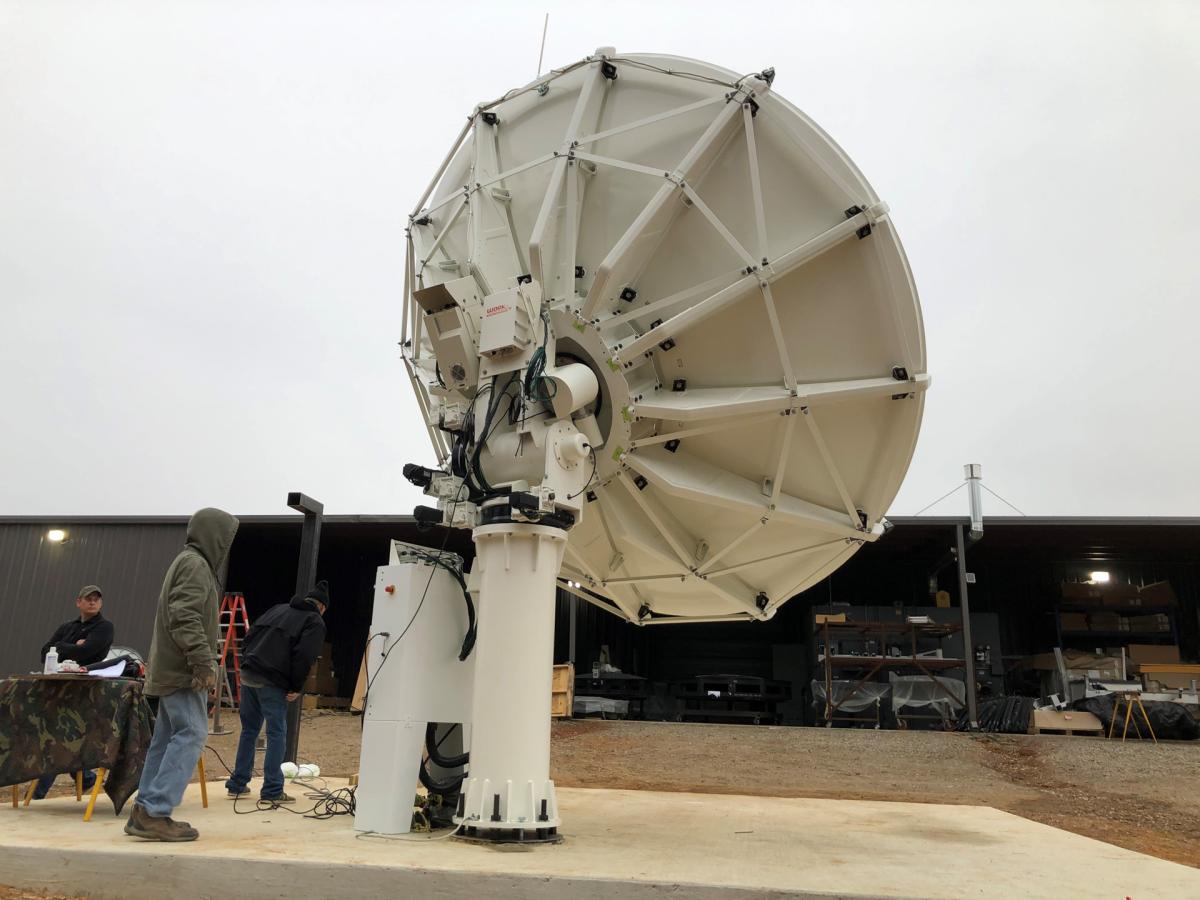

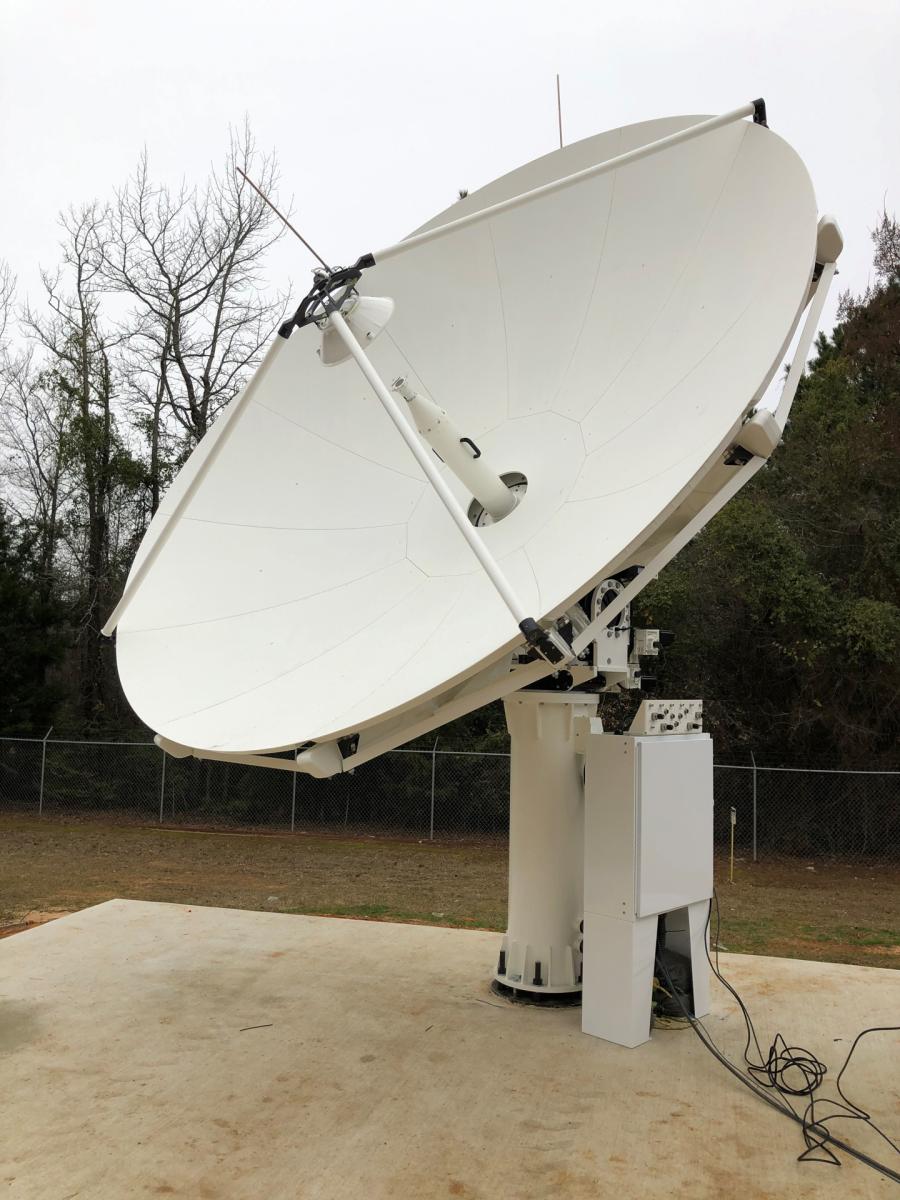

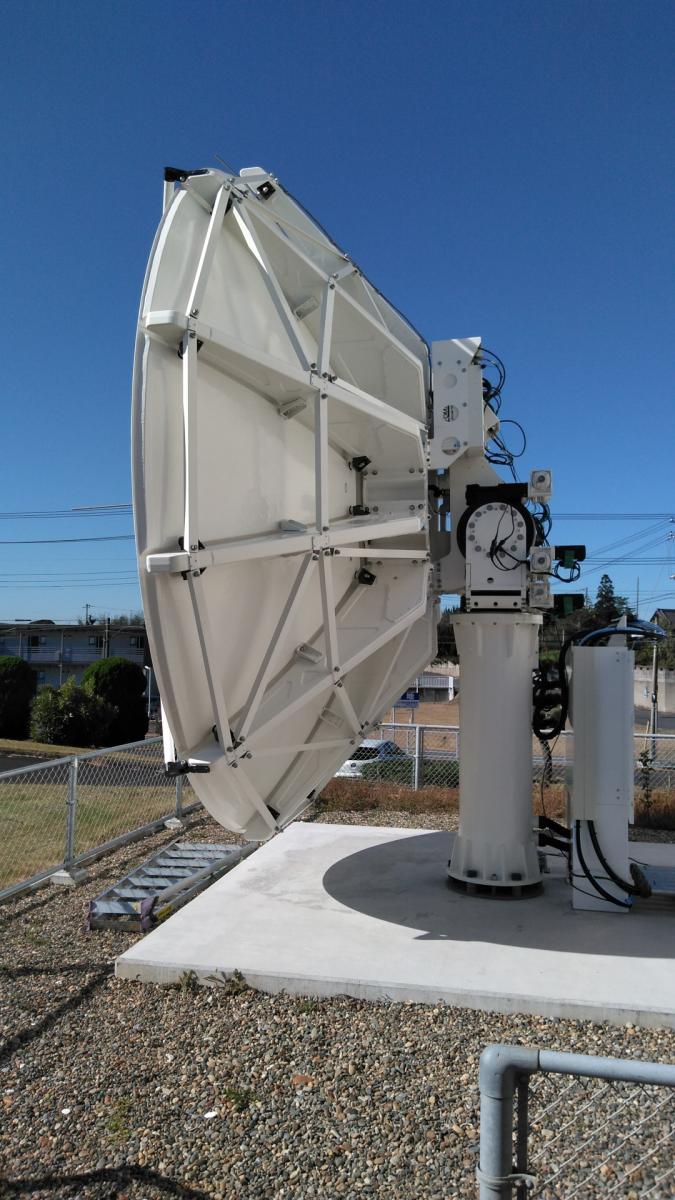

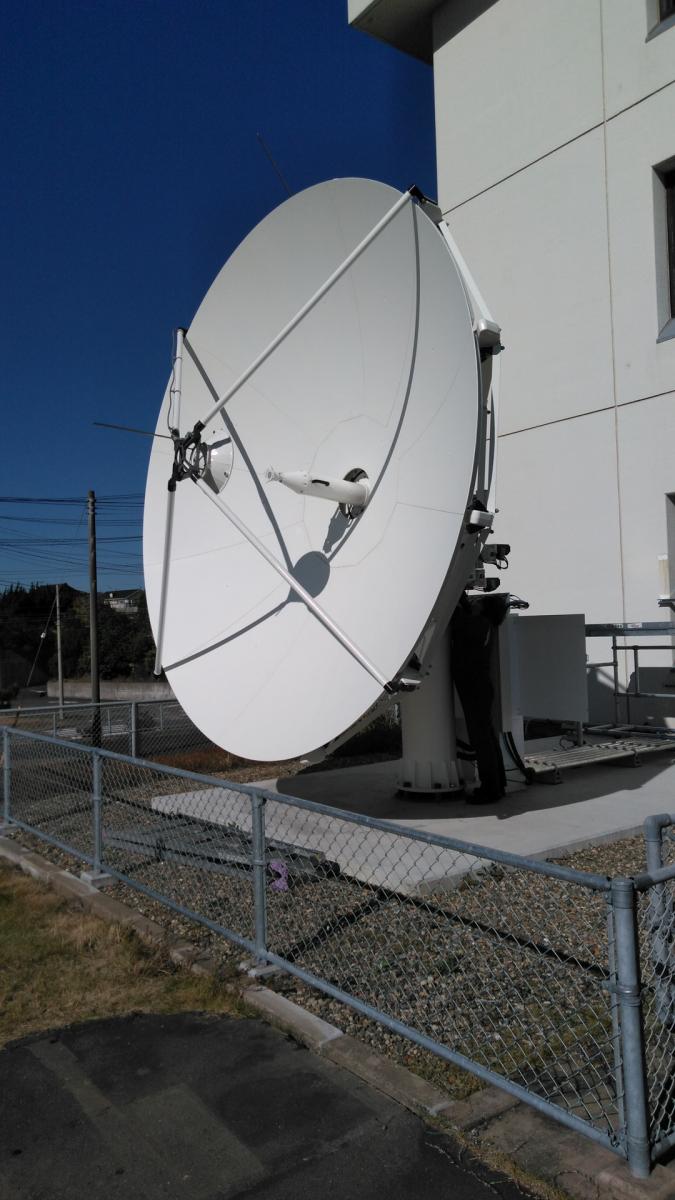

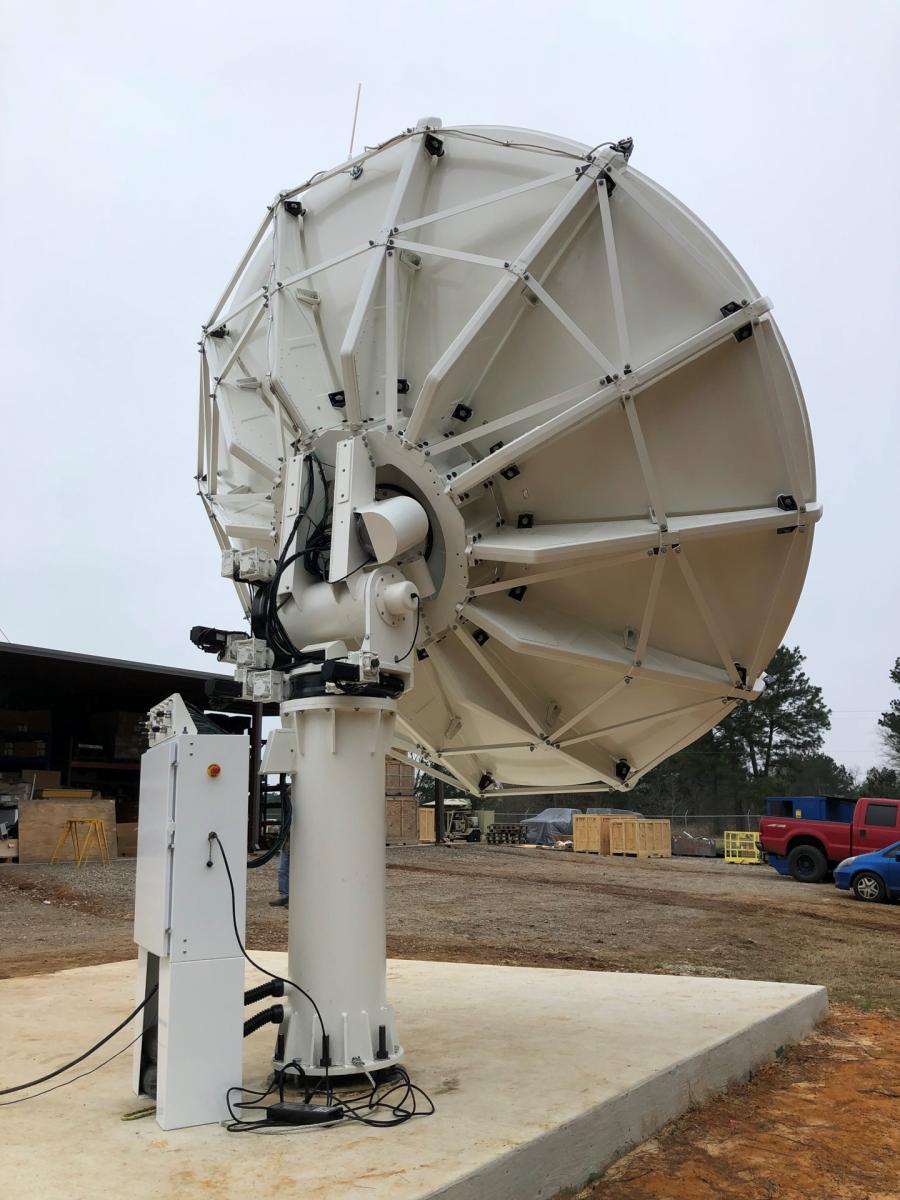

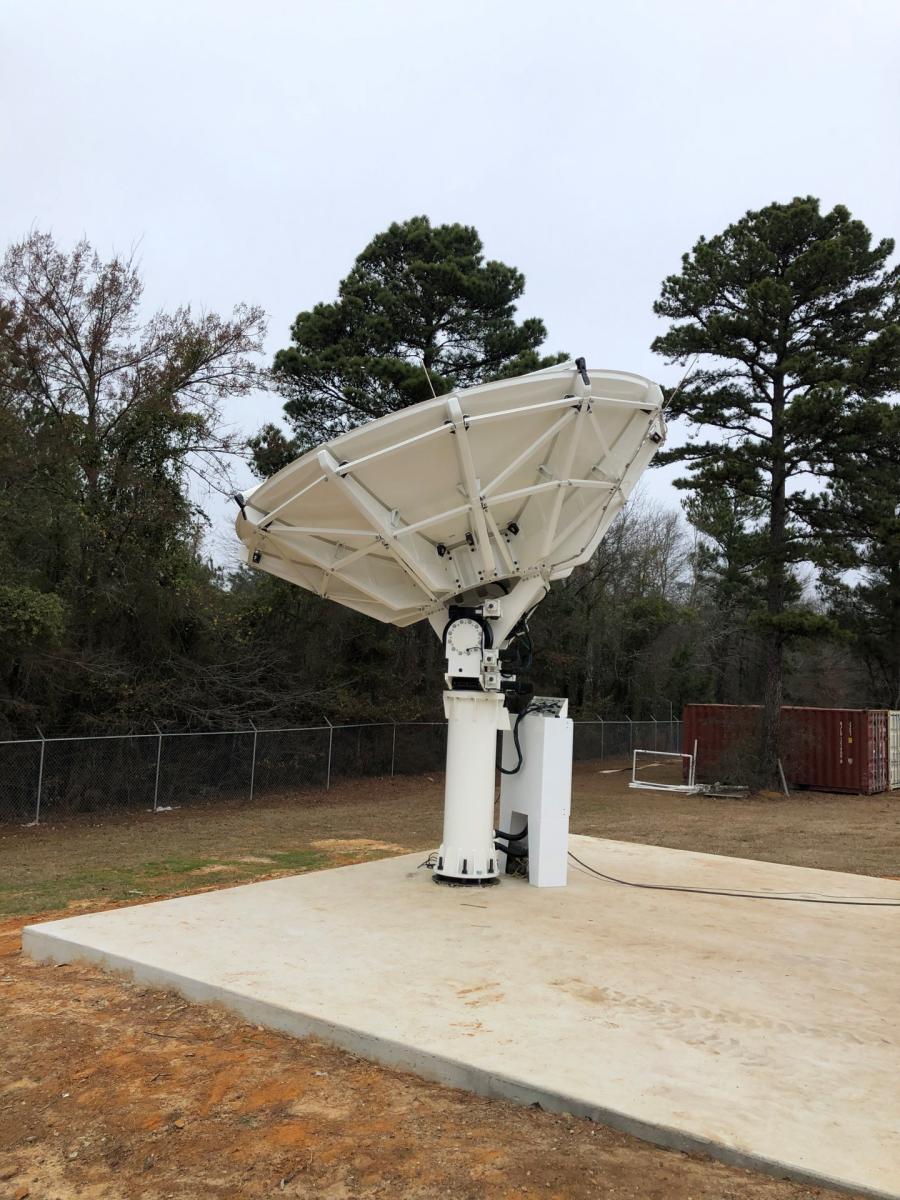

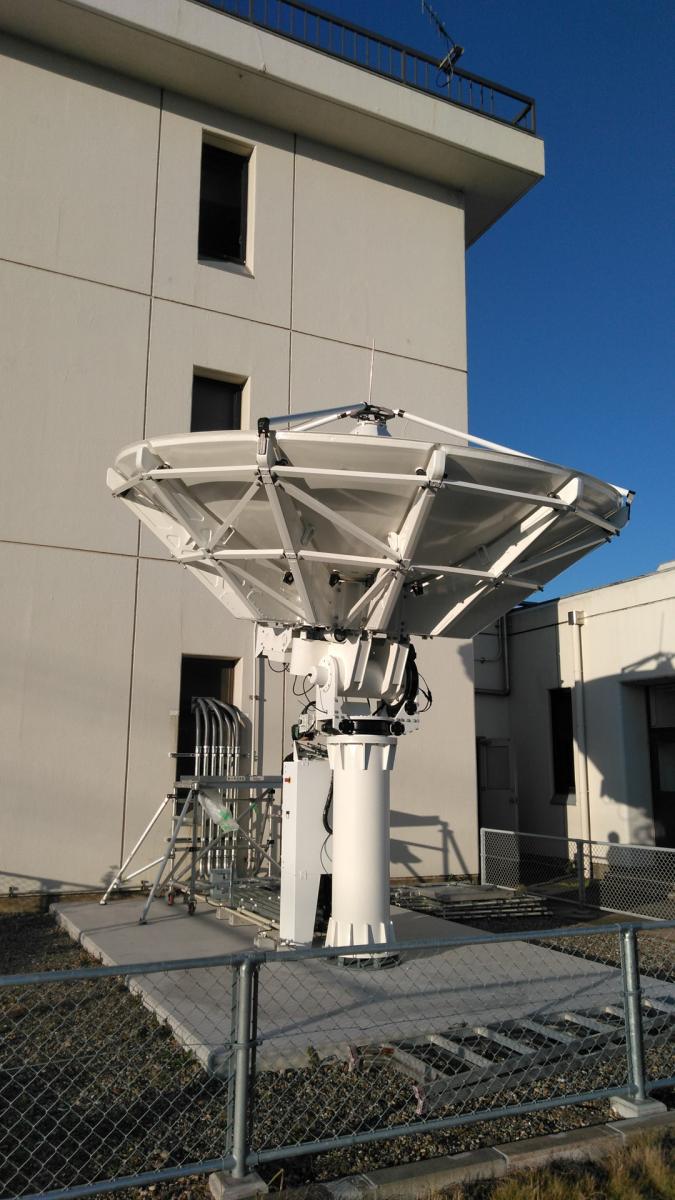

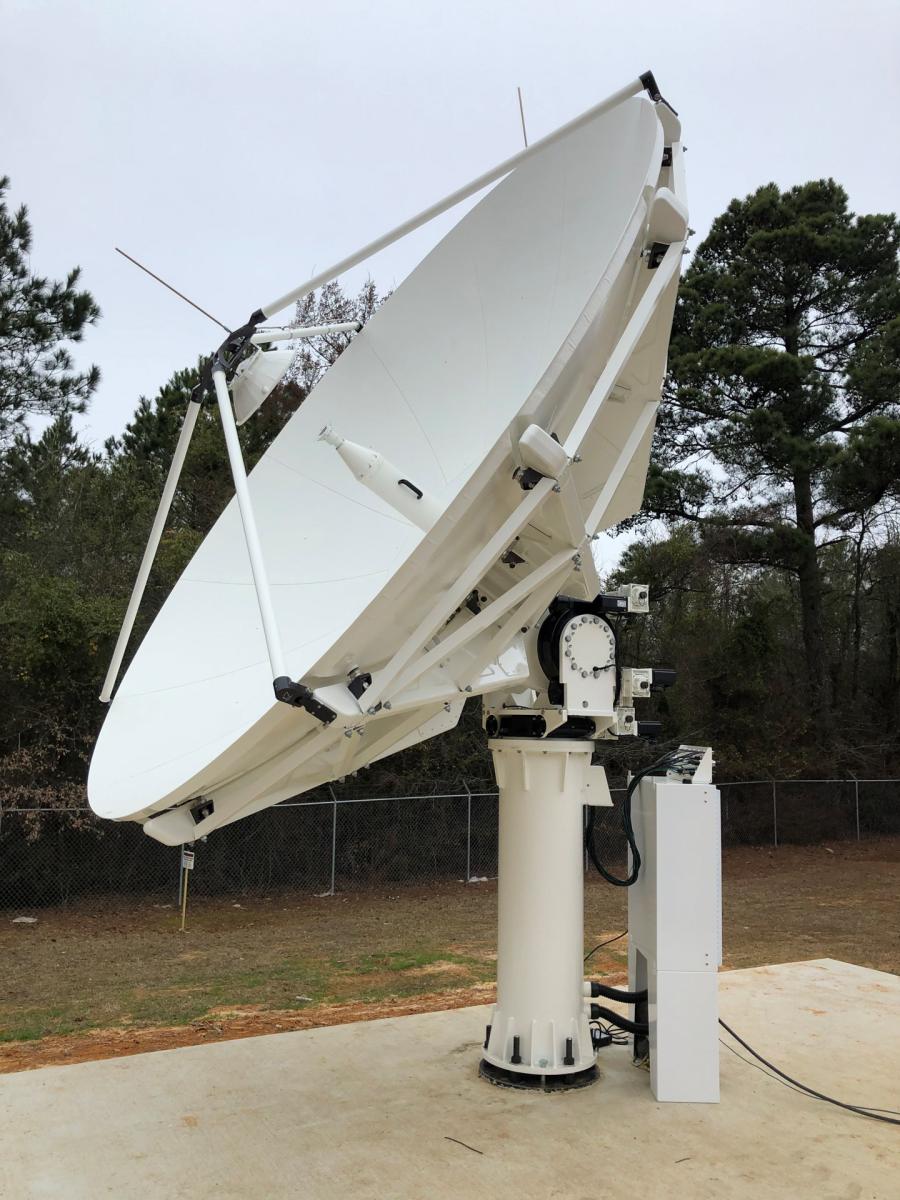

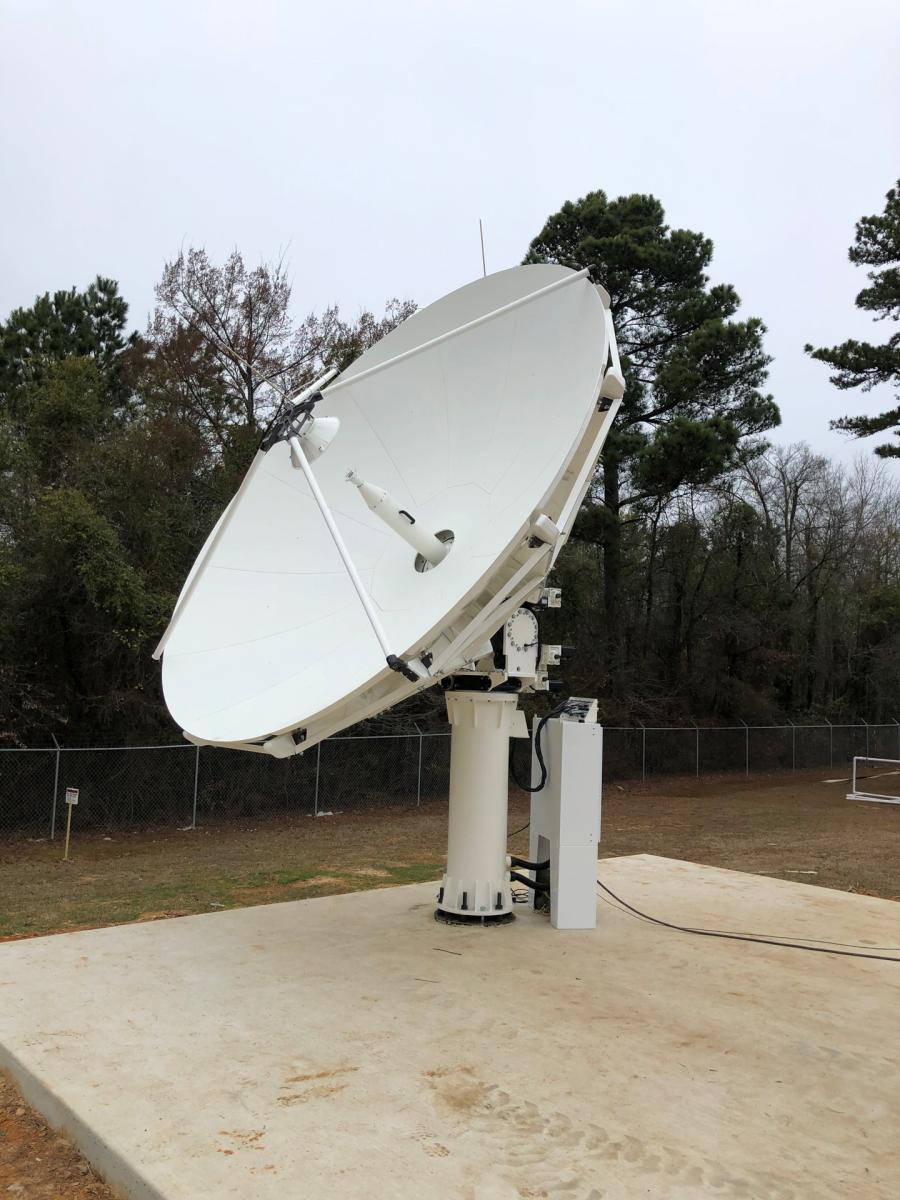

The Sat-Lite Technologies Model 4281 X/Ku/Ka Band Antenna is a high performance full motion fixed earth station antenna. This antenna features a precision aligned carbon fiber reflector and a biased drive servo control system. The reflector has been factory aligned and measured using a precision laser tracking system to ensure high surface accuracy. The antenna is designed for X, Ku, and Ka band frequencies. The galvanized steel pedestal offers full motion azimuth drive (180° continuous), and a 0 to 90 Deg elevation drive. The servo system offers dual biased drives for azimuth and elevation axes along with multiple tracking options and an integrated tracking receiver.

The antenna is designed to meet international performance specifications for commercial off-the-shelf application
