34138 Orbis Full Motion Portable Antenna

Product Overview

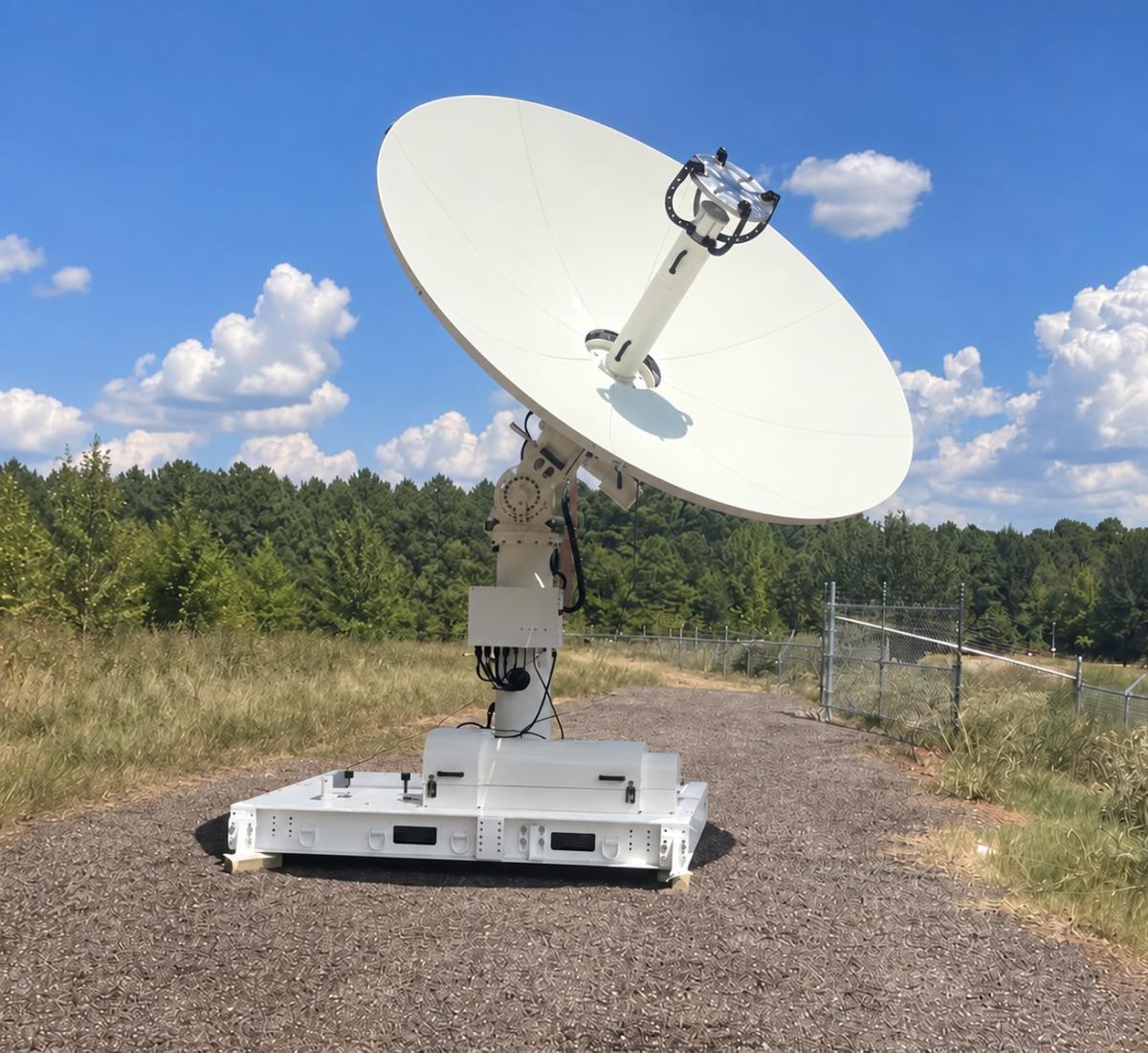

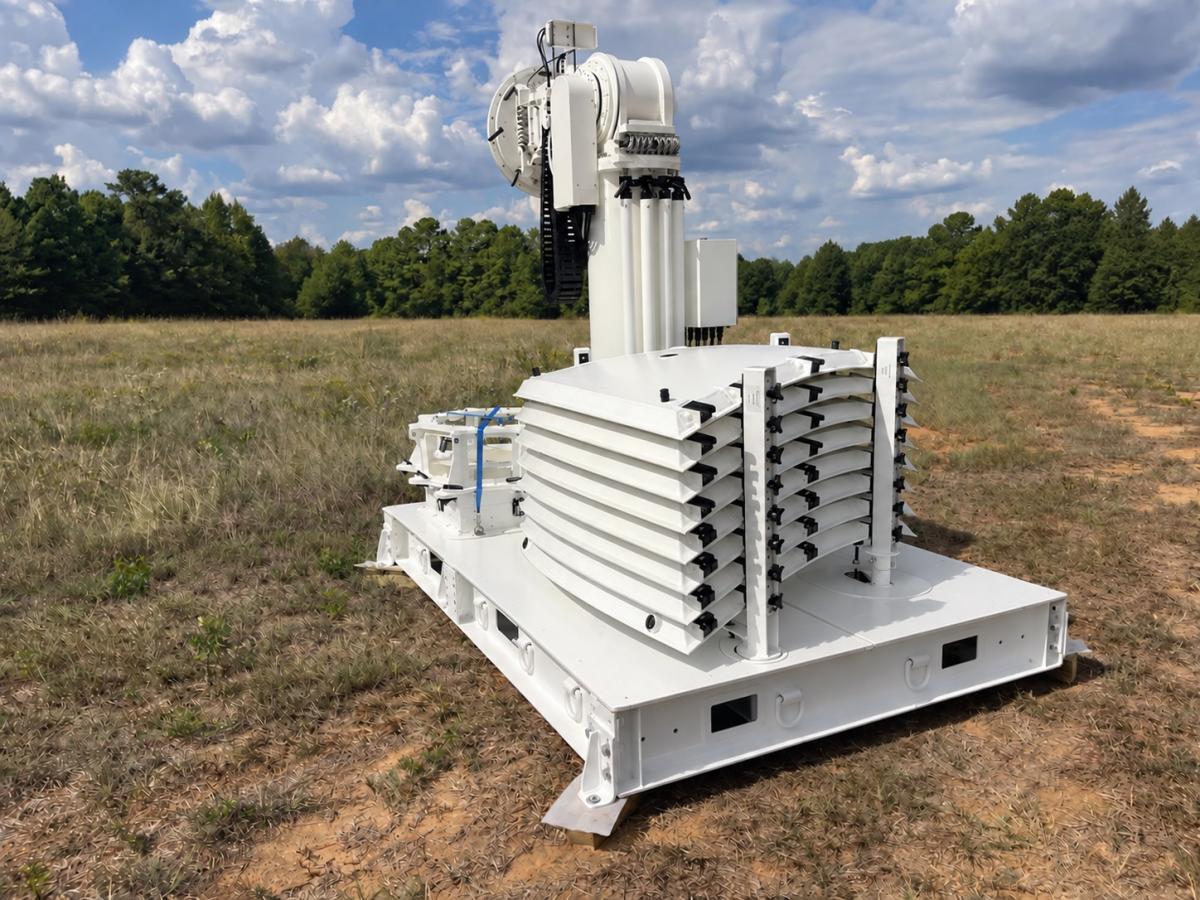

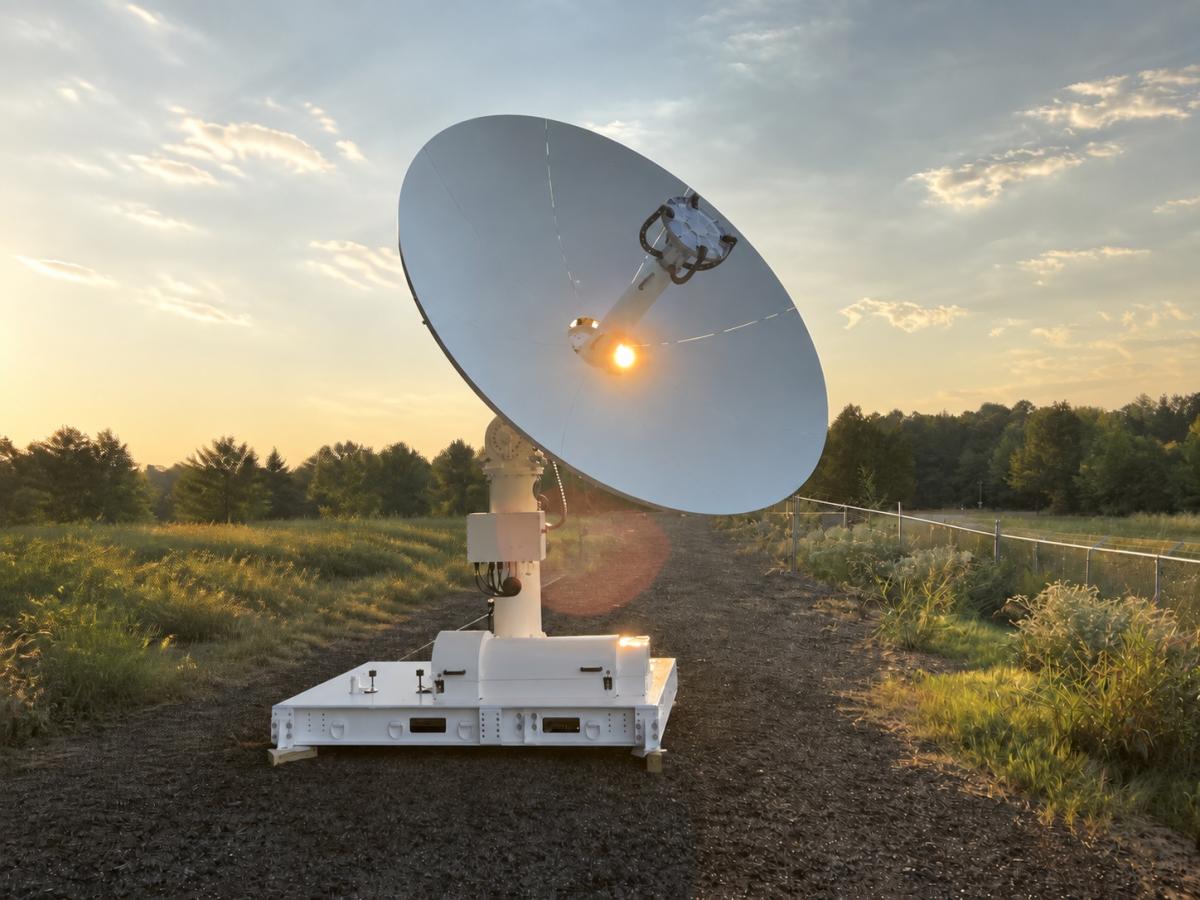

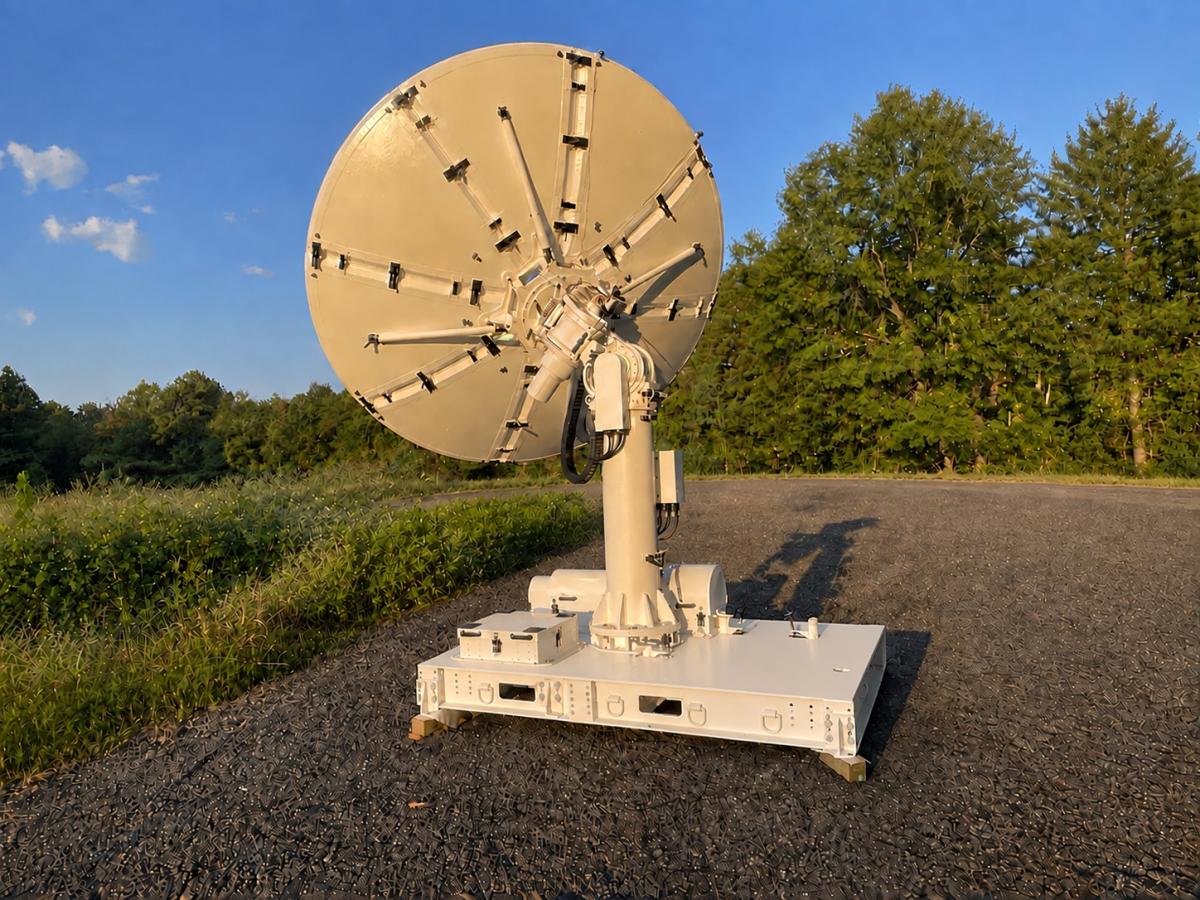

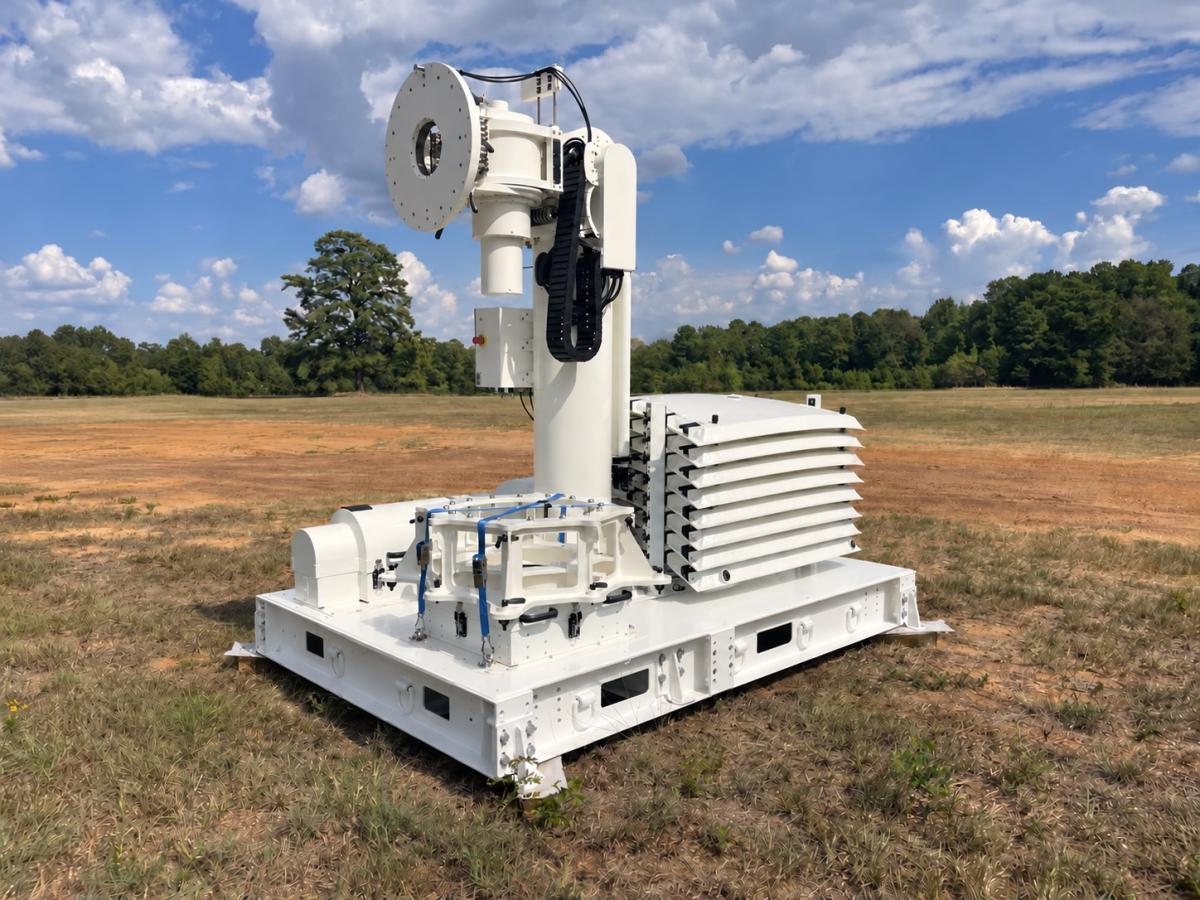

The Sat-Lite Technologies Model 34138 Multi-Band XY Antenna is designed for multi orbit tracking. This antenna features a precision XY Pedestal with carbon fiber reflector, servo control system, and multiple feed packages. Full sky coverage is provided with +/- 90 Degs of travel in both X and Y axes at up to 10 deg/sec. The reflector has been factory aligned and measured using a precision laser tracking system to ensure high surface accuracy and repeatability. Reflector, feed and subreflector pack and store on the skid for transport.

The antenna is designed to meet international performance specifications for commercial off-the-shelf applications. Multiple integration packages can be accommodated.
