Full Motion LEO-MEO Antennas


13138 Transportable X/Y LEO/MEO/GEO Tracking Antenna

  1. Home
  2. Products
  3. Full Motion LEO-MEO Antennas
  4. 13138 Transportable X/Y LEO/MEO/GEO Tracking Antenna
Thumbnail 1
Thumbnail 1
Thumbnail 1
Thumbnail 1

Product Overview

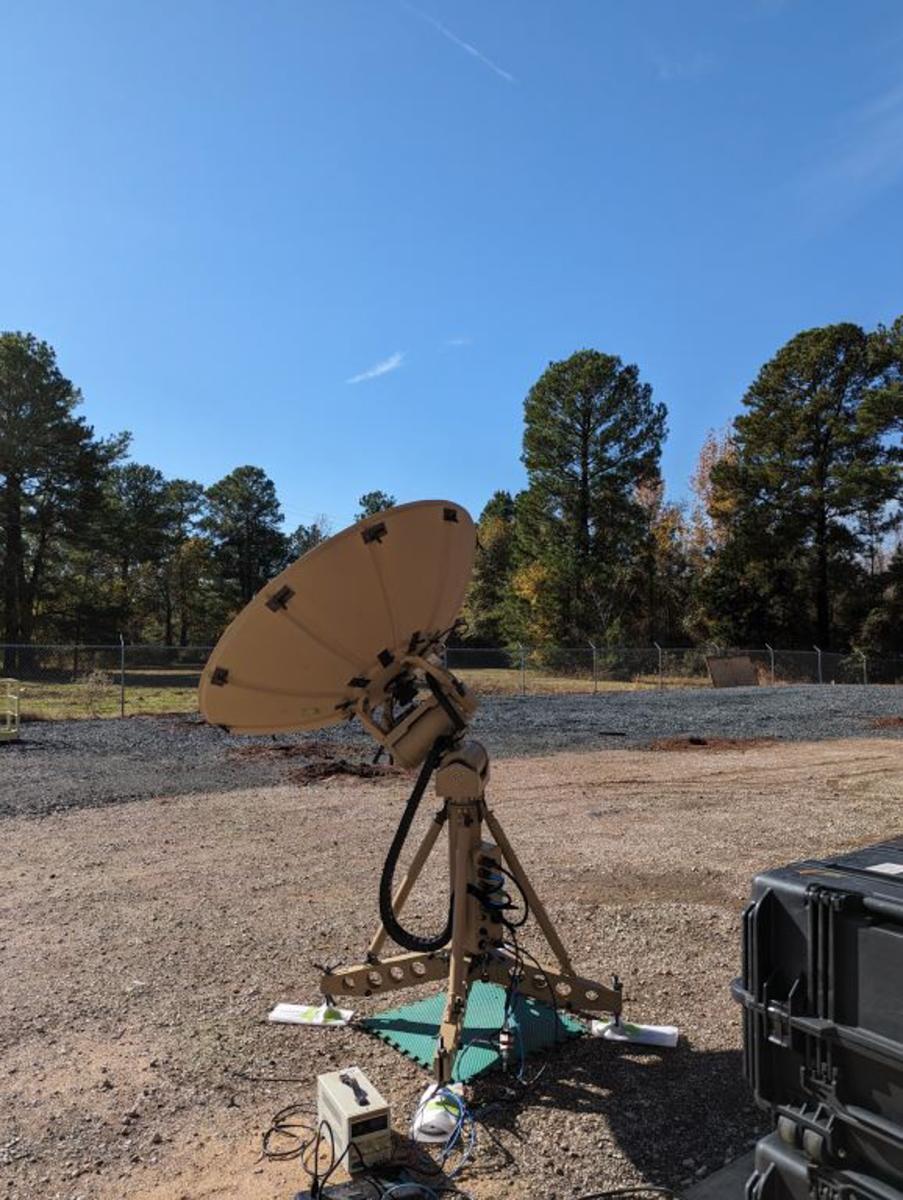

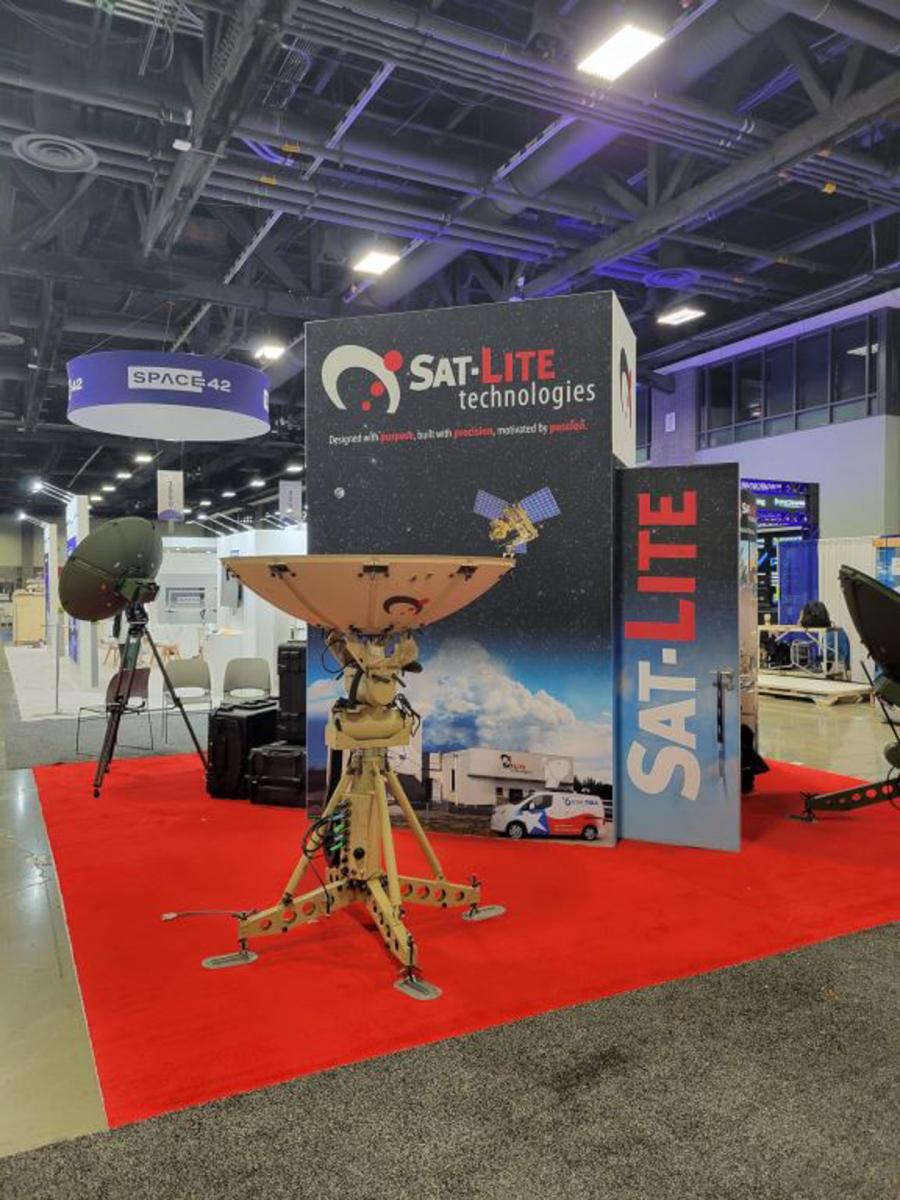

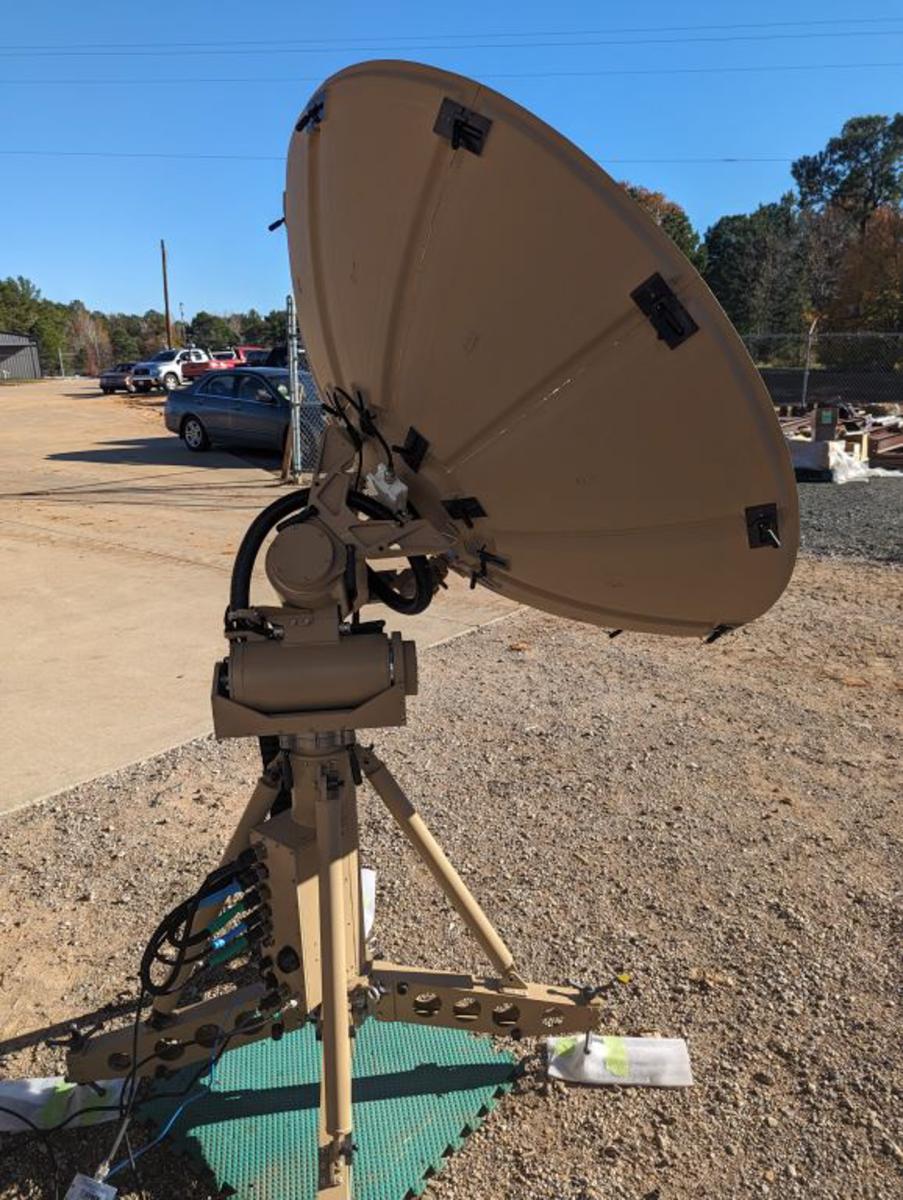

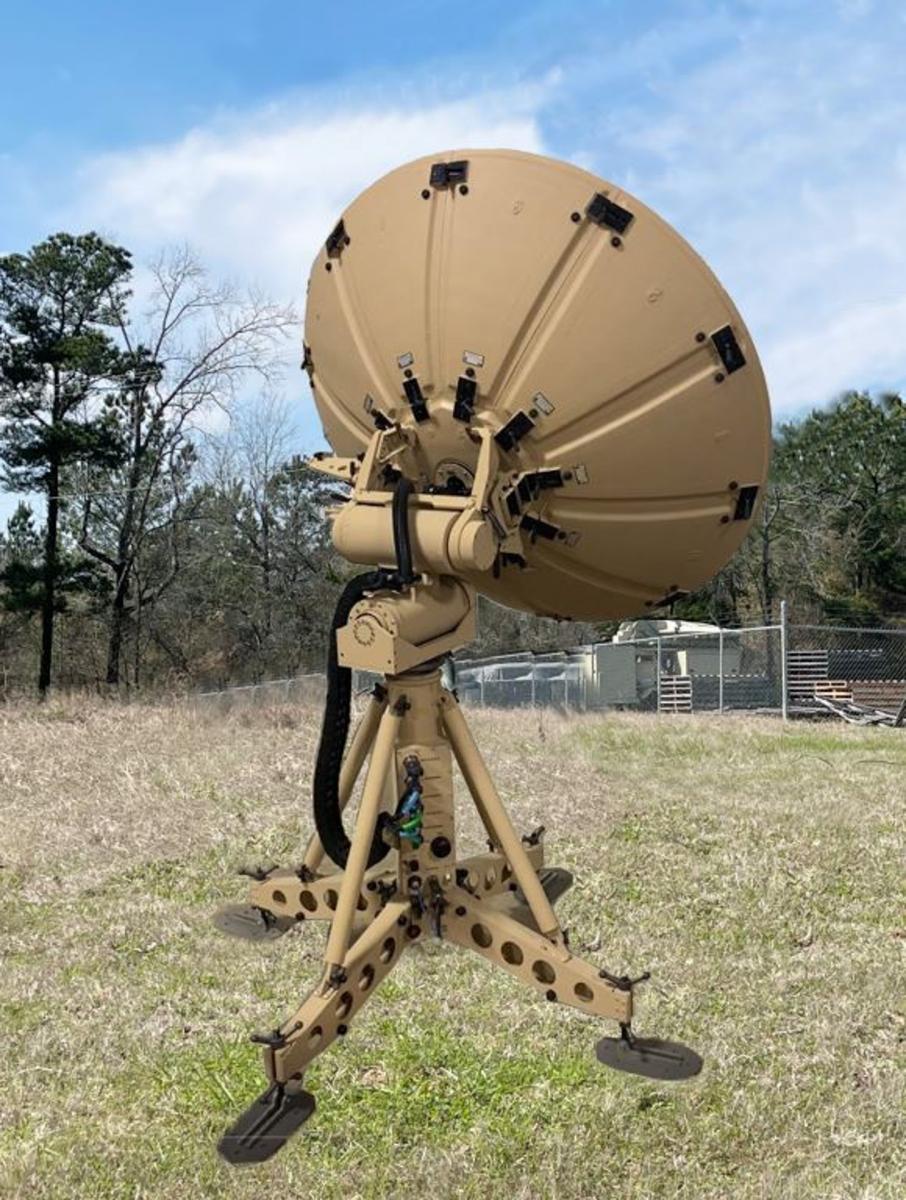

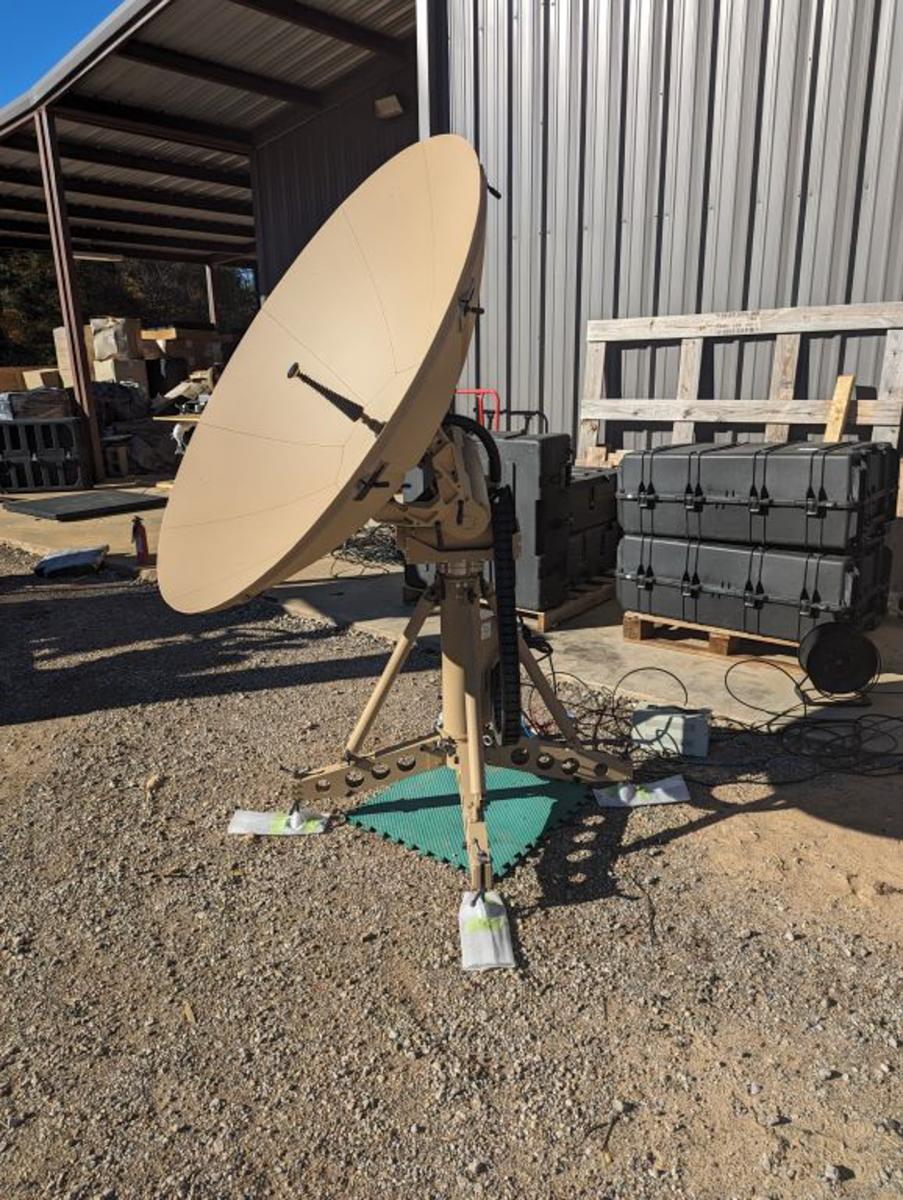

The Sat-Lite Technologies Model 13138 Portable X-Y antennas are highly portable and designed to meet IATA weight requirements for checked baggage. The antennas feature a 11-pc segmented carbon fiber composite reflector. Assembly time is less than 15 minutes. The X-Y Axis pedestal provides excellent stiffness characteristics and convenience for the user when peaking and tracking satellites. The antenna is designed to meet international performance specifications for multiple applications. Satcom frequencies for X, Ku, and Ka Band feeds are shown with additional bands available for LEO / MEO applications.

 Get a Quote
  • Tracks LEO, MEO, and GEO targets
  • Integrated High Performance Servo Control System with Precision Tracking
  • Full Motion X/Y Pedestal for overhead tracking.
  • High Speed Retrace > 15 deg / sec
  • Multi-Band capable with interchangeable feeds
  • Integrated L Band Beacon Receiver with Optional Spectrum Analyzer
  • Precision Carbon Fiber Reflector, No Special Tools / Bolt Together Design
  • Portable / No Tools required for assembly.
13138 X-Y 850-0077-4.pdf

13138 X-Y 850-0077-4.pdf

Download PDF
Configuration
 Motorized
Reflector Size
 1.35 m
