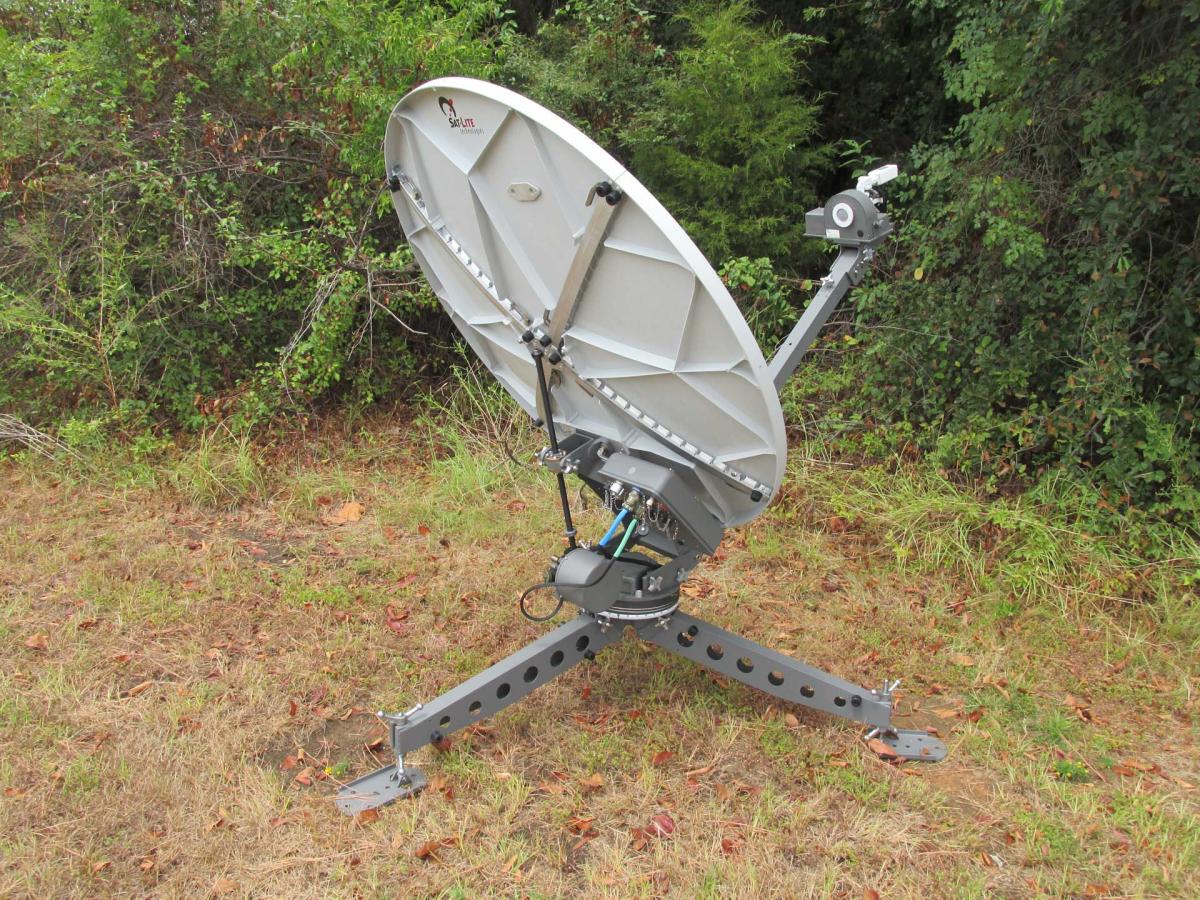

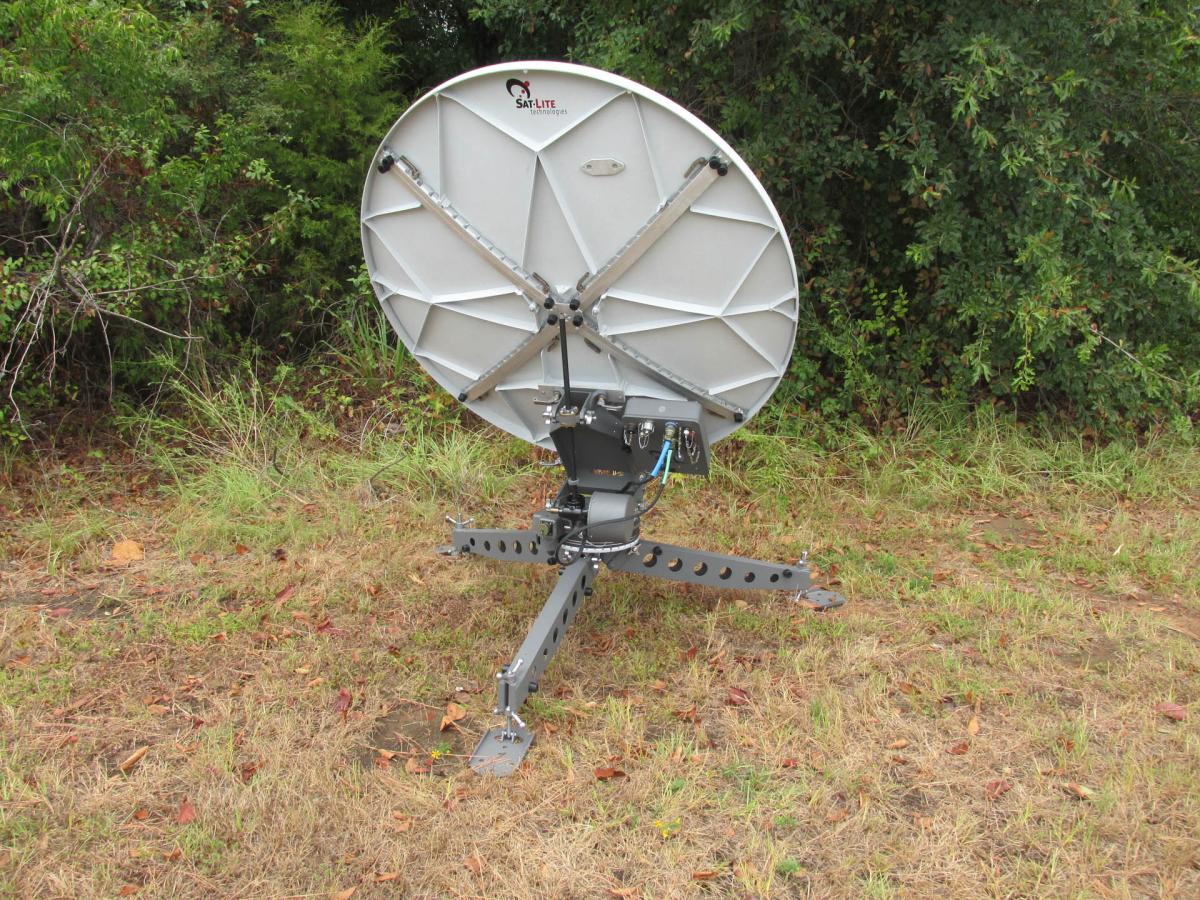

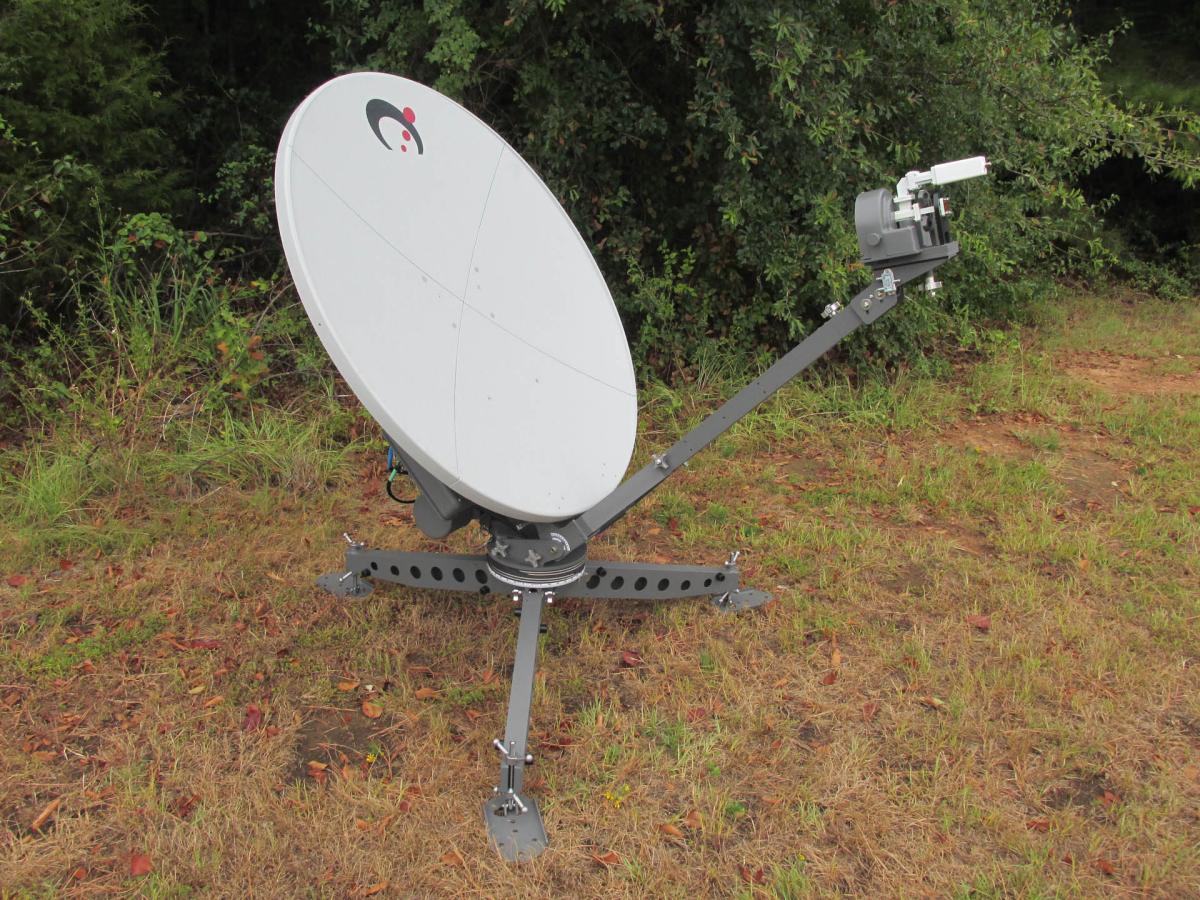

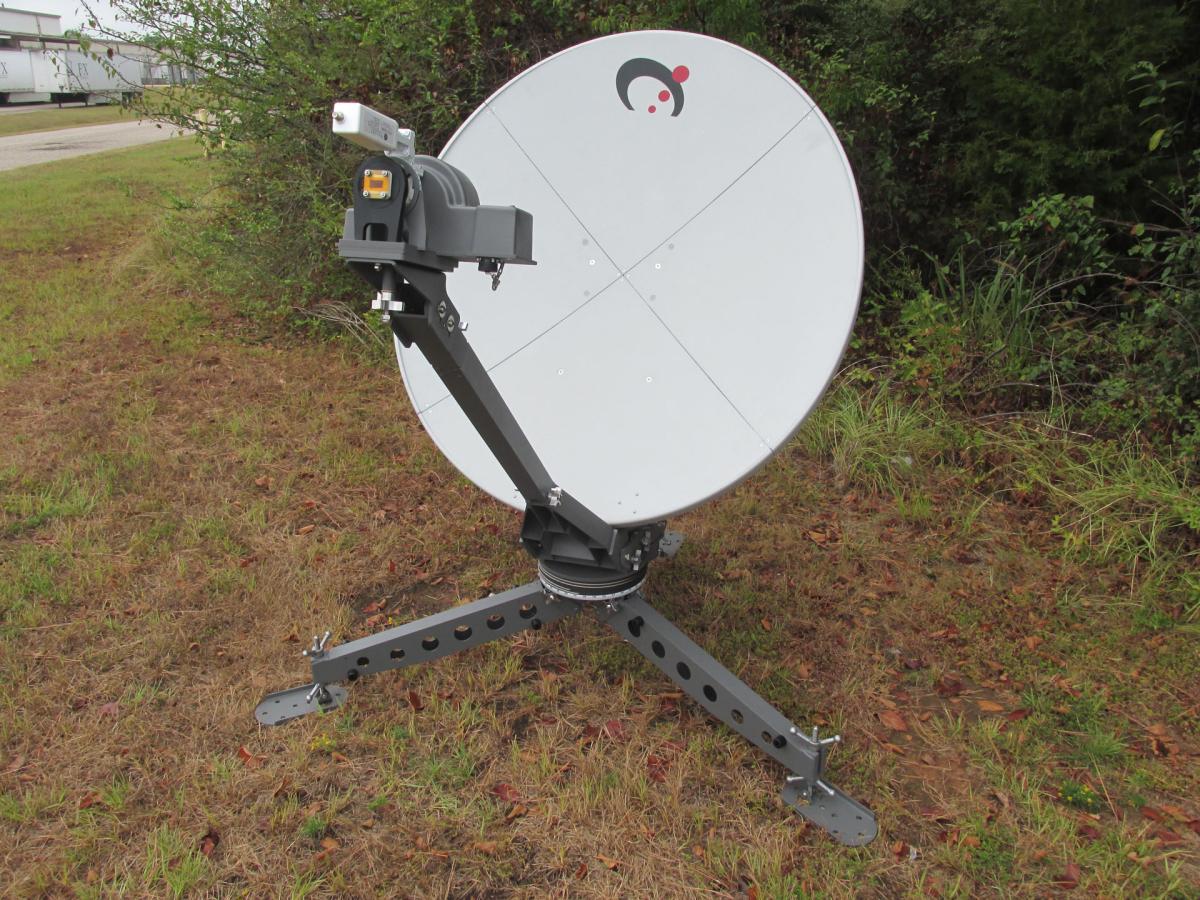

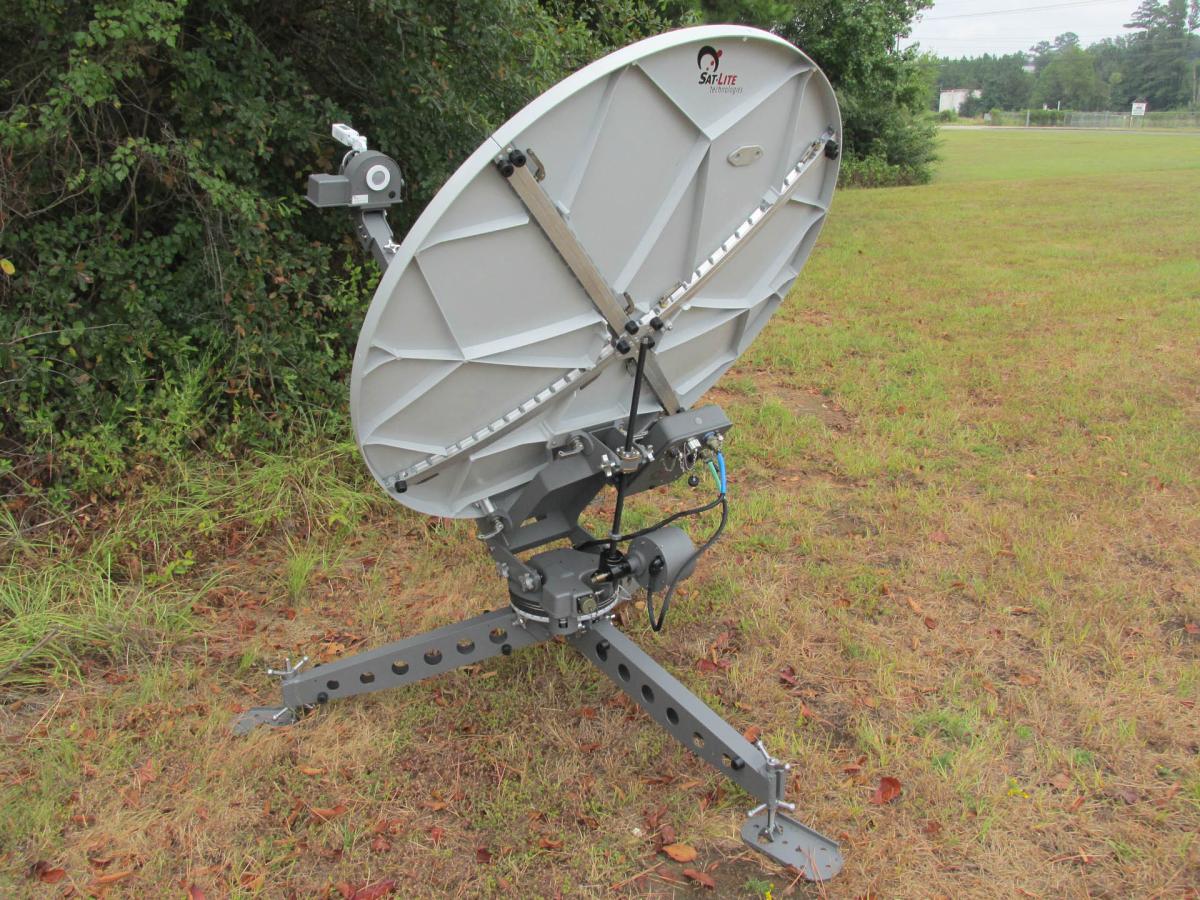

The Sat-Lite Technologies Model 1233 Celero motorized flyaway antenna is highly portable, compact, light-weight, and can be assembled by one person in less than 15 minutes. The antenna features a 2 or 4 piece segmented glass fiber reinforced reflector with compact pedestal and is designed to be value priced while providing exceptional performance in a lightweight package. The elevation-over-azimuth pedestal provides excellent stiffness characteristics and convenience for the user when pointing and peaking on a satellite. The antenna packs in 3 ruggedized shipping cases as standard configuration, other options are available.
In addition, the antenna is designed to meet International performance specifications for commercial or military applications. Multiple feed configurations and paint schemes are readily available. The control system is integrated within the unit. The full travel azimuth and elevation ranges allow the control system to provide true autolocate and peak options for the end user with simple 1 button operation.
Sat-Lite Flyaway VSAT auto acquire antennas provide communications when terrestrial networks are not available or are not usable due to catastrophic events. Like the vehicle mount solutions, Sat-Lite Technologies also offers a host of flyaway antenna products that can be shipped anywhere and offer immediate and reliable network access at the push of a button for various services. Sat-Lite flyaway antennas provide the most portable and dependable solutions for remote communications needs. The antennas and available controller options are preconfigured to operate with various amplifier and modem combinations.
Typical users may include the following:
Whatever the industry, Sat-Lite can deliver a high performance flyaway antenna for reliable communication solutions.
The Sat-Lite Technologies RC4000 Antenna Controller is a fully weatherized unit that is pre-integrated with the Antenna System. The unit can be supplied with GPS, Compass, and DVB receiver to provide accurate position and antenna heading information. Optional Beacon Receiver, Spectrum Analyzer, and multiple user interfaces are available. The control unit deploys the antenna to an accurate elevation and polarization angle and then sweeps in azimuth to locate a signpost satellite (with known DVB signal). The onboard DVB receiver locks on the satellite and positively identifies it. Accurate look angles can then be used to peak on the final target / desired satellite longitude.
The Sat-Lite Technologies Flyaway Antenna Controller is a fully weatherized unit that is pre-integrated and can be quickly mounted on the Antenna. The unit comes with a GPS and Compass to provide accurate position and antenna heading information. The control unit deploys the antenna to an accurate elevation and polarization angle and sweeps in azimuth to locate a satellite. The onboard DVB receiver locks on the satellite and positively identifies it. Accurate look angles can then be used to peak on a desired satellite longitude.
Configuration |
Motorized |
Reflector Size |
1.2 m |
