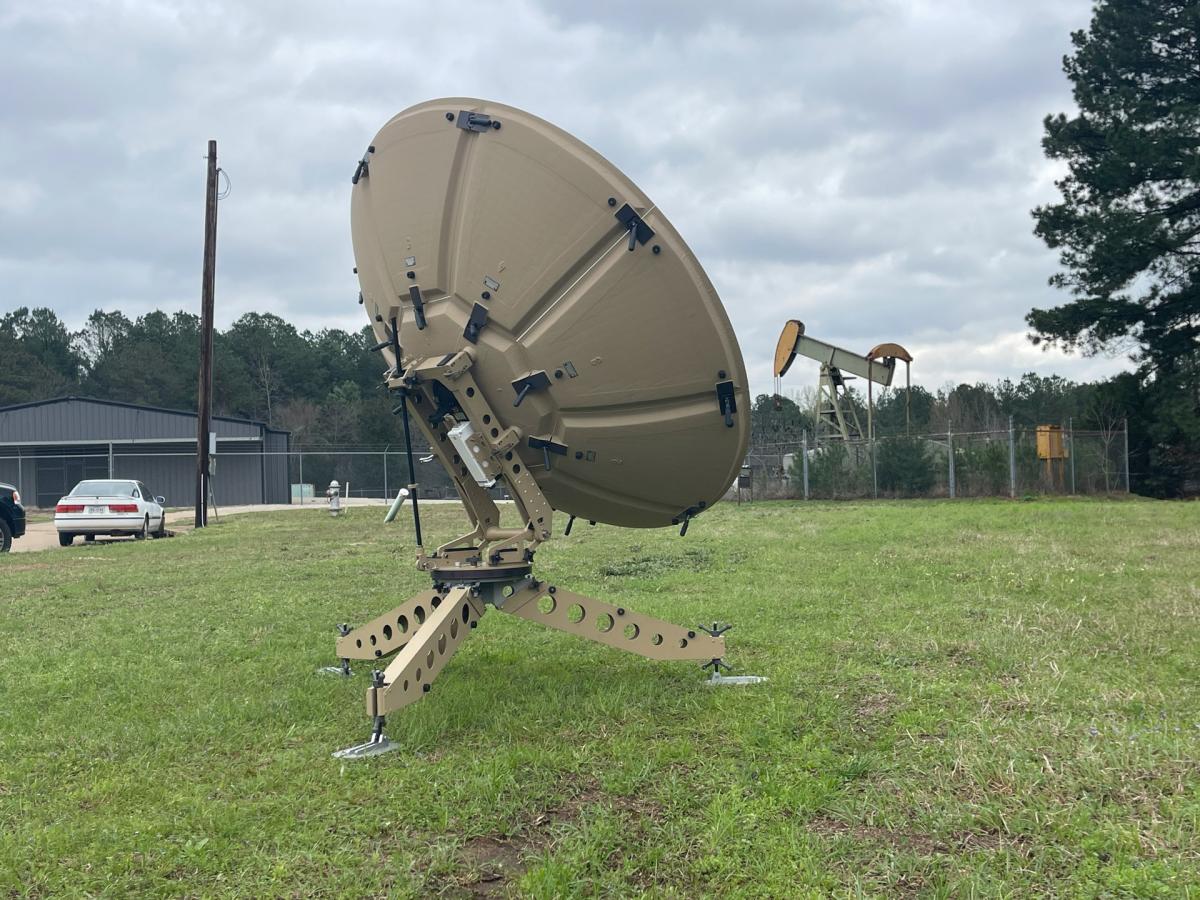

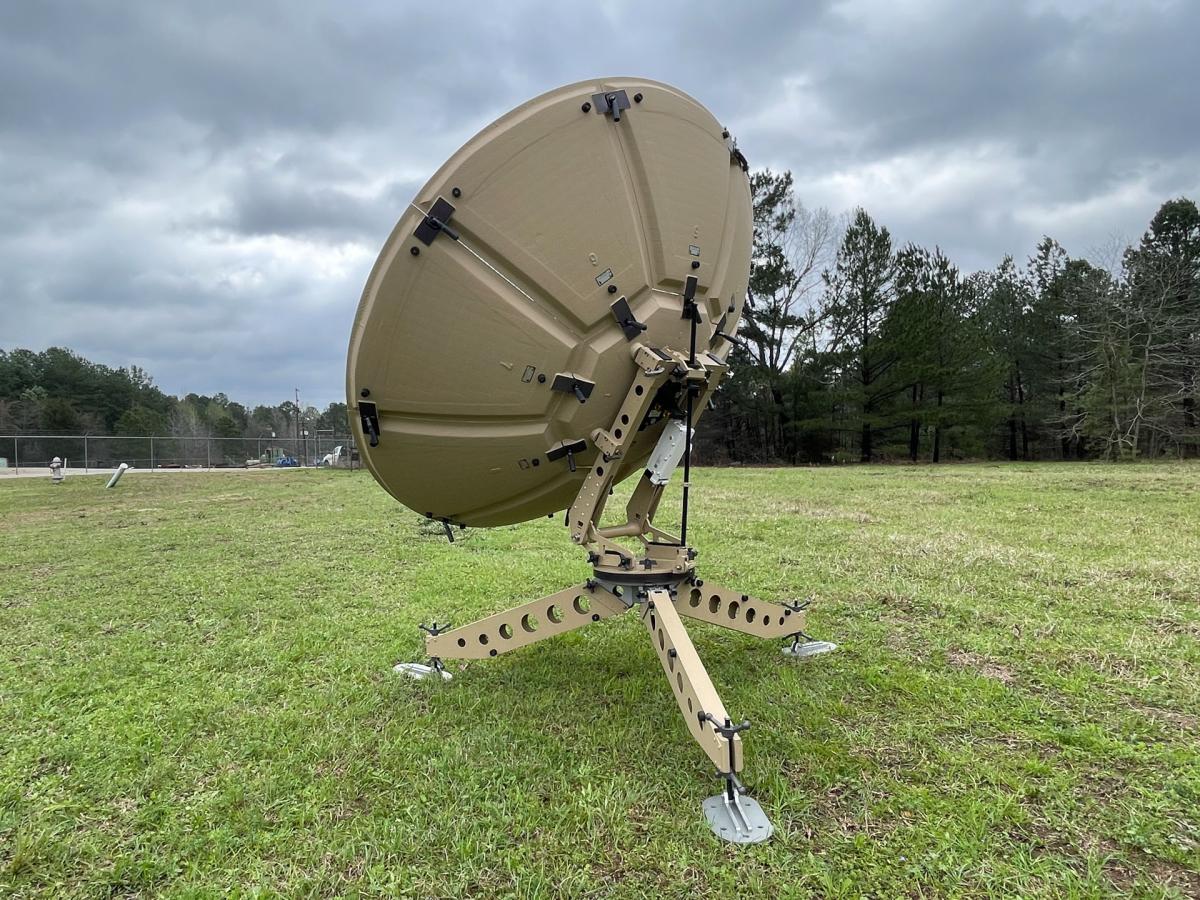

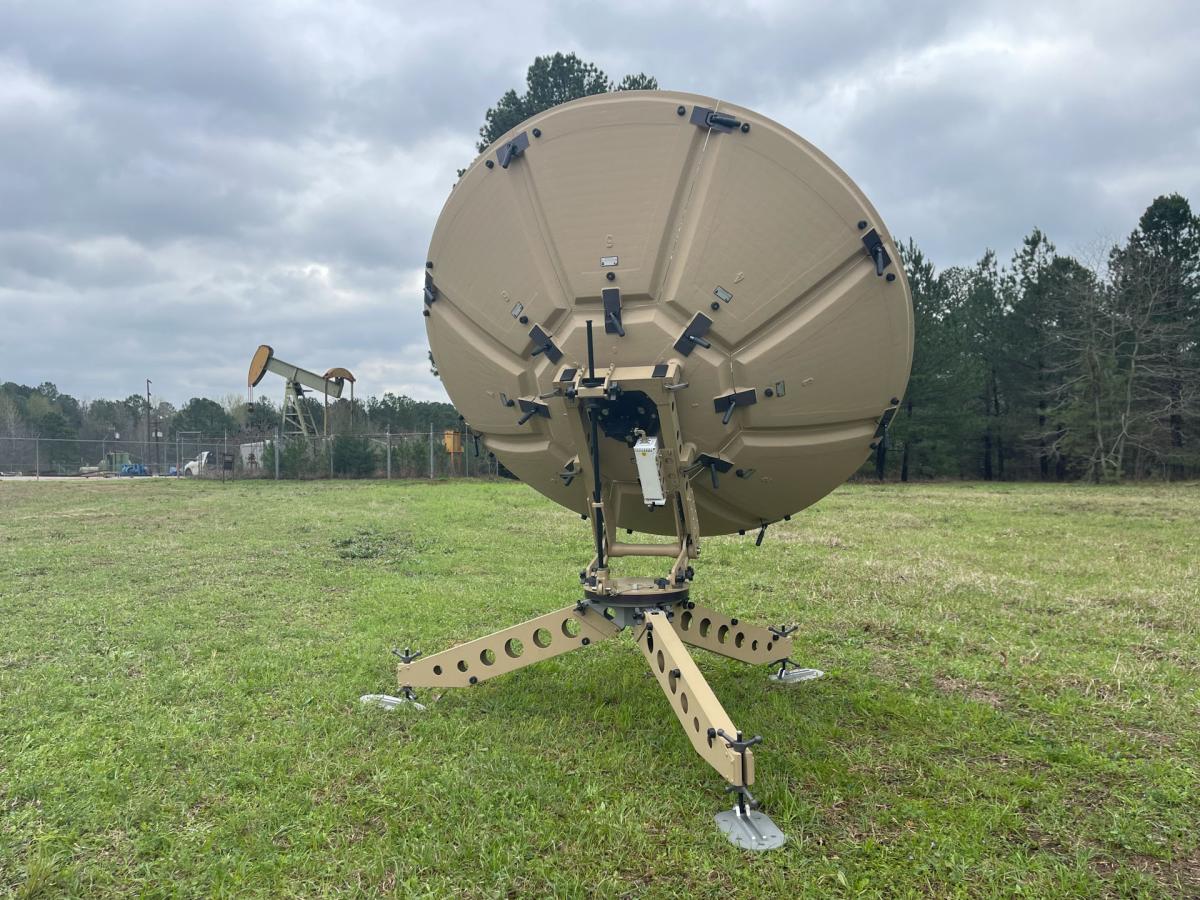

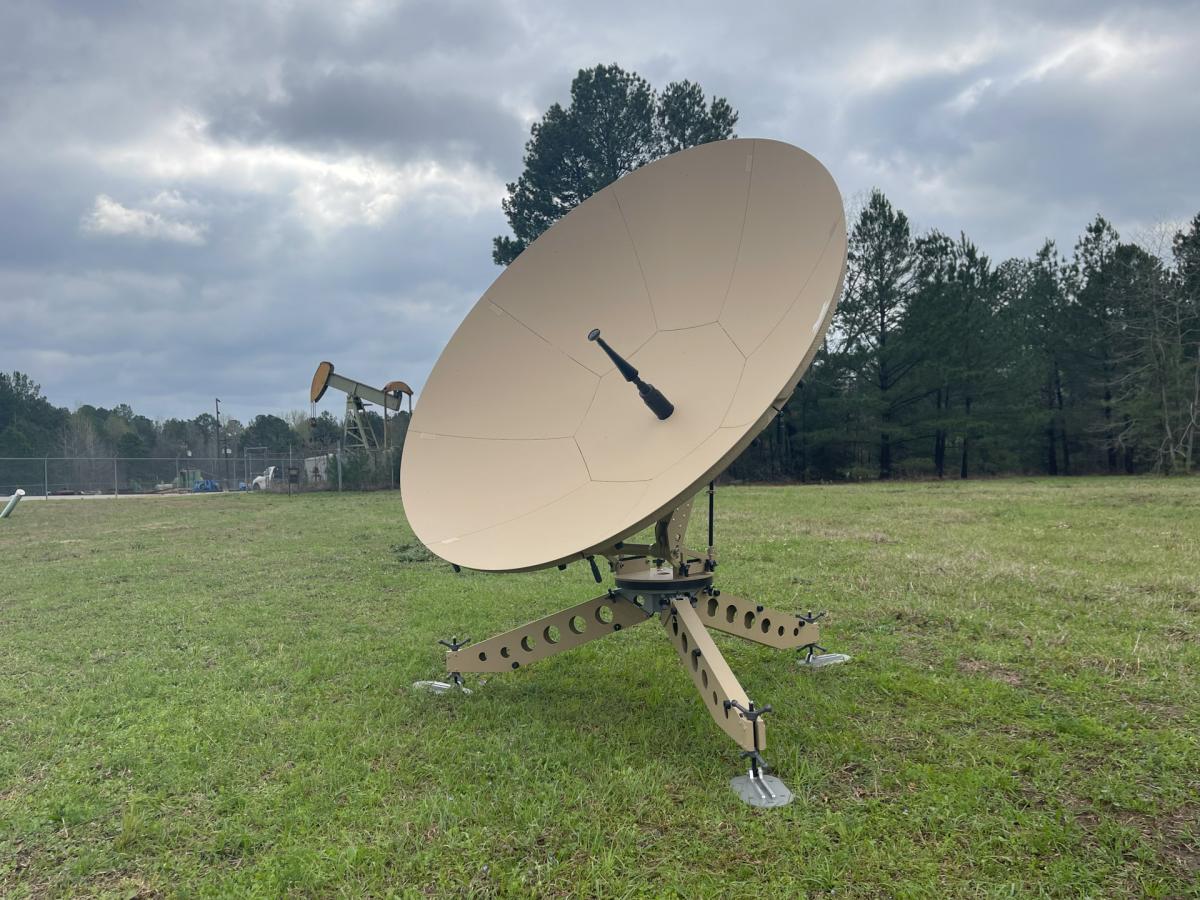

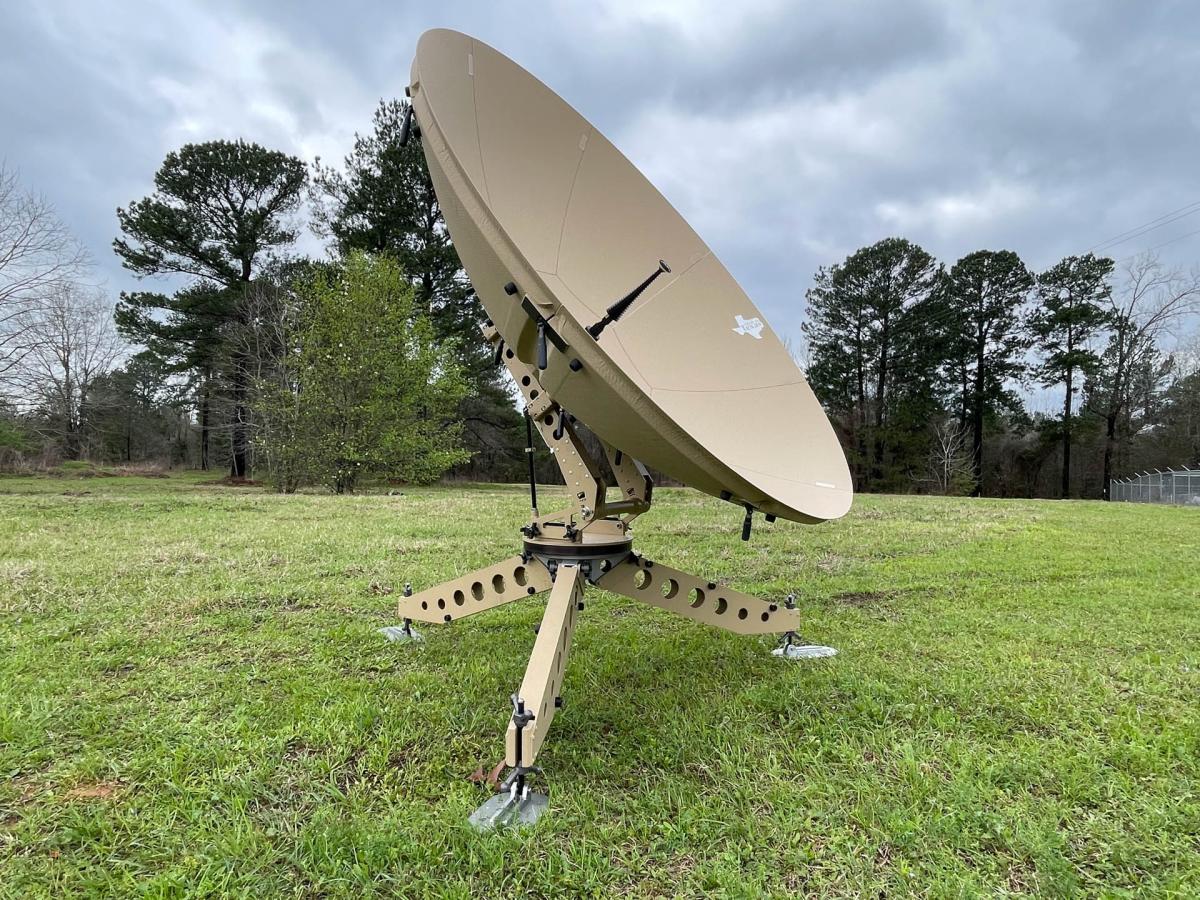

The Sat-Lite Technologies Model 1628 Agilis Manual flyaway antenna is highly portable, compact and light-weight. The antenna features Sat-Lite’s unique 9-piece segmented carbon fiber composite reflector designed for unmatched performance. Assembly time for the antenna is one person in less than 15 minutes. The elevation-over-azimuth pedestal provides excellent stiffness characteristics and convenience for the user when pointing and peaking on a satellite.
In addition, the antenna is designed to meet international performance specifications for multiple applications. Multiple feed and packaging configurations can be supplied for a specific requirement that include low and high-power amplifier configurations for each frequency band. An optional RC350 Satellite Finder is offered as an option to aid the user in finding and peaking on a satellite.
Sat-Lite Flyaway SNG antennas provide high-bandwidth connectivity solutions for a wide variety of up-linking applications. Like the vehicle mount solutions, Sat-Lite Technologies offers a host of flyaway antenna products that can be shipped anywhere and provide reliable high-power capability in a lightweight modular package. Sat-Lite flyaway antennas offer the most portable and dependable solutions for remote communications needs. The antennas and available controller options are preconfigured to operate with various amplifier and modem combinations.
Typical users may include the following:
Whatever the industry, Sat-Lite can deliver a high performance flyaway antenna for reliable communication solutions.
The Sat-Lite Technologies RC4000 Antenna Controller is a fully weatherized unit that is pre-integrated with the Antenna System. The unit can be supplied with GPS, Compass, and DVB receiver to provide accurate position and antenna heading information. Optional Beacon Receiver, Spectrum Analyzer, and multiple user interfaces are available. The control unit deploys the antenna to an accurate elevation and polarization angle and then sweeps in azimuth to locate a signpost satellite (with known DVB signal). The onboard DVB receiver locks on the satellite and positively identifies it. Accurate look angles can then be used to peak on the final target / desired satellite longitude.
Configuration |
Manual |
Reflector Size |
1.65 m |
