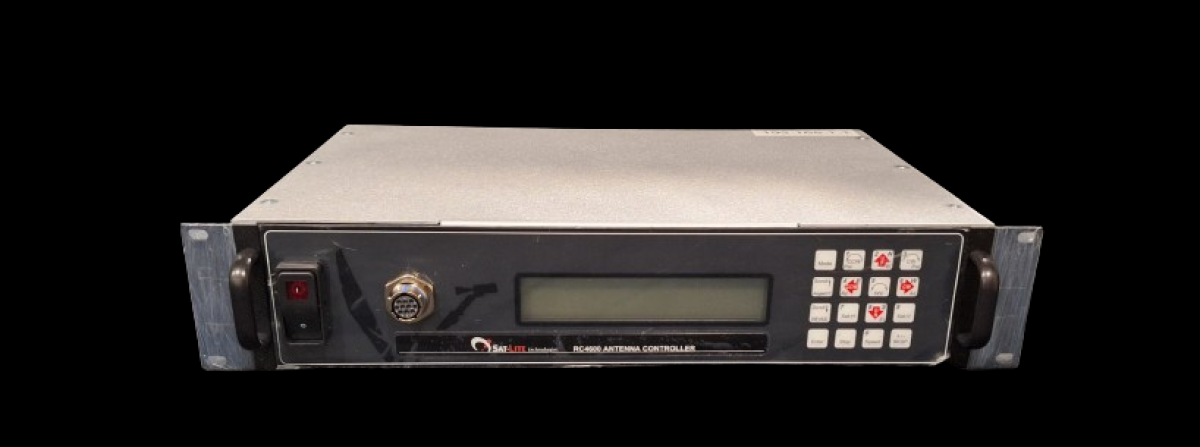

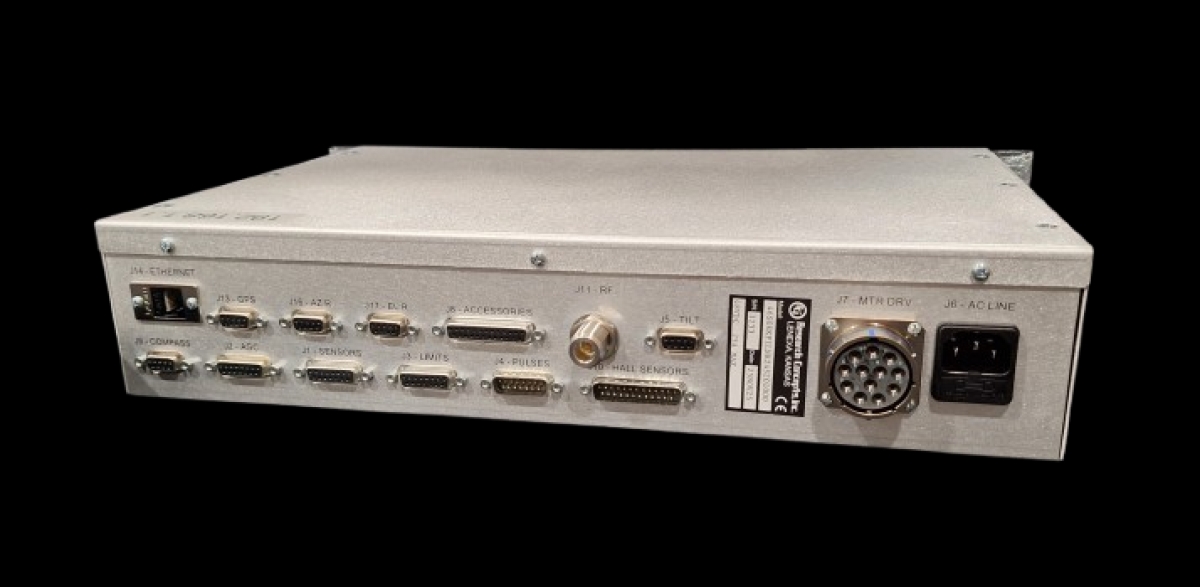

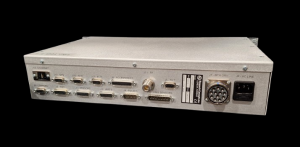

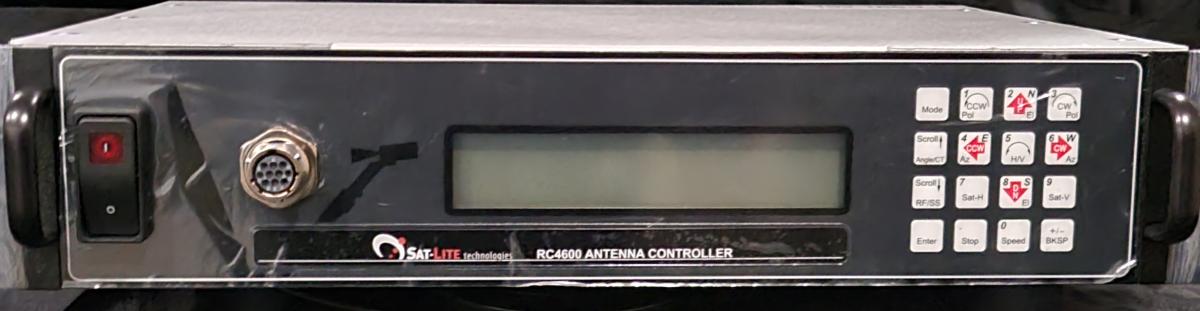

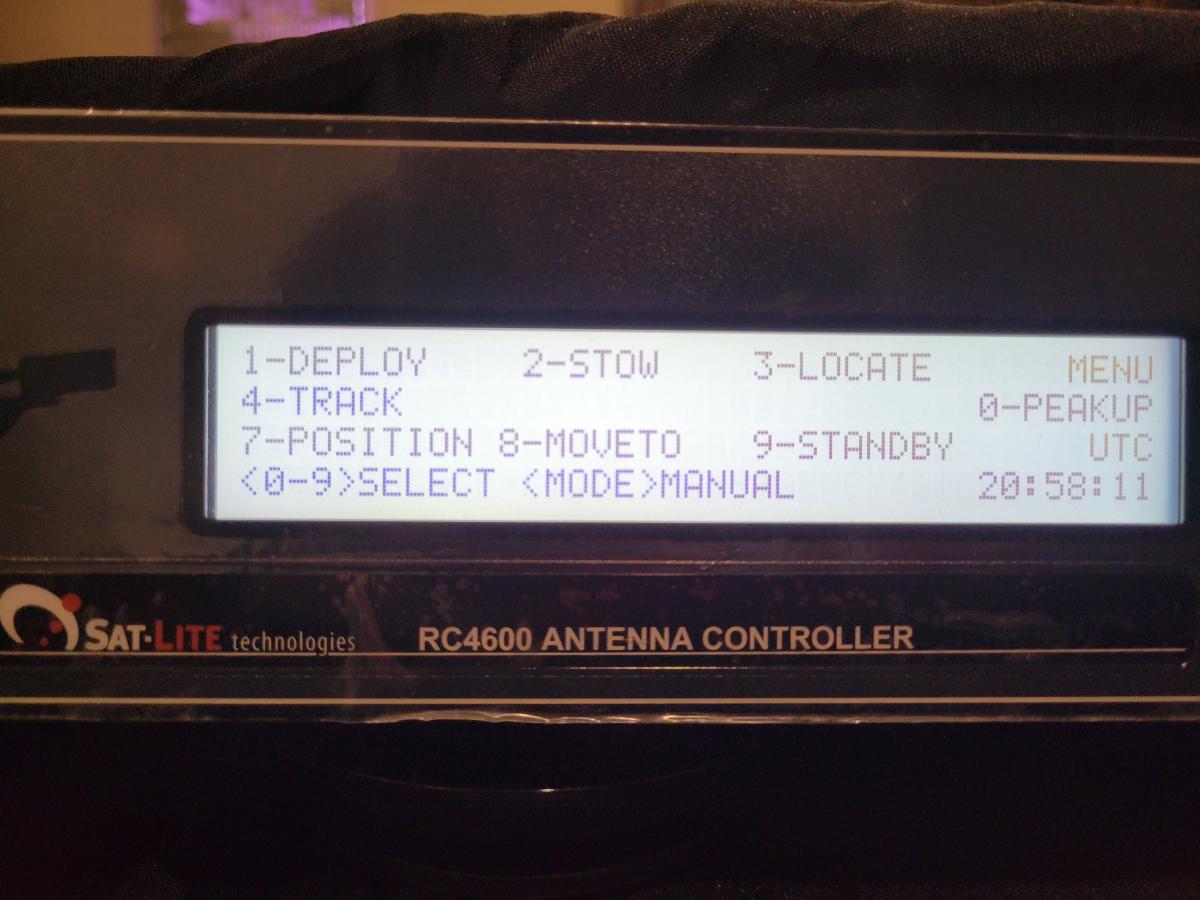

RC4600 Controller for Mobile Antennas

Sat-Lite utilizes the rack-mount version of the RC4600 for mobile applications. The controller is a high-performance, three-axis antenna tracking system that balances intuitive operation with advanced functionality. It integrates proven satellite acquisition and tracking features with the precise position-holding capability of a high-end, servo-based control system. Designed for demanding environments, this controller supports reliable performance in extreme and mobile operating conditions.

 Get a Quote
  • High Performance Rack Mount Antenna Controller for Sat-Lite Antennas
  • High Resolution Position Sensors – 16 Bit or Higher depending on configuration required

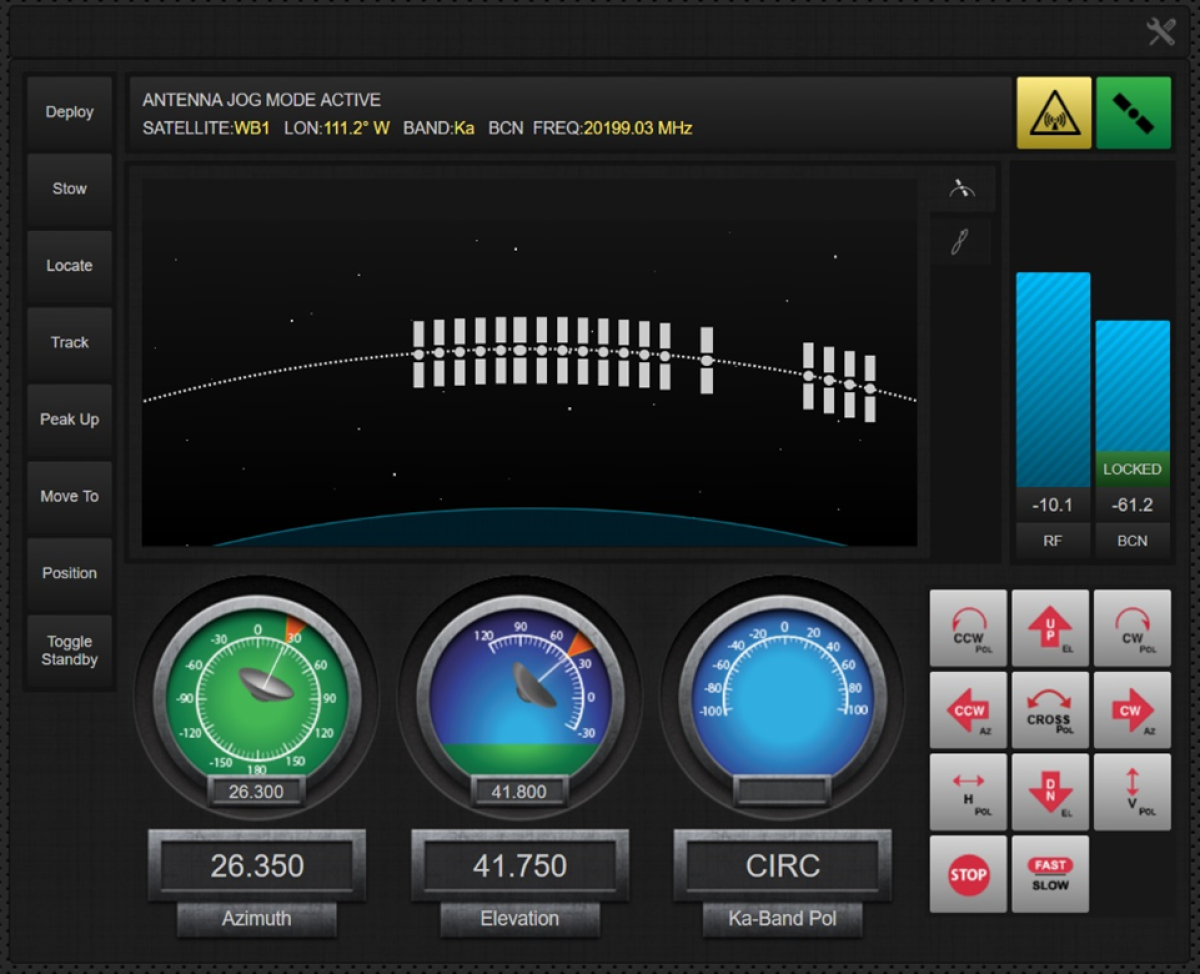

  • 64 Hz Position Servo – PID Servo recalculates and corrects position error on two axes each cycle.    GUI Ethernet Web Browser Interface with optional handheld remote
  • Integrated L Band Beacon Receiver for tracking modulated beacons
  • User Programmable DVB-S/S2 Receiver for Positive Satellite ID
  • Two rack unit enclosure
  • GPS / Compass for Auto Acquisition
  • Inclined Orbit Tracking / Steptrack / Memory Track / TLE Tracking
  • L Band Spectrum Analyzer Option
850-0094 Rev A RC4600 Rack Mount Controller.pdf

850-0094 Rev A RC4600 Rack Mount Controller.pdf

Download PDF
